RIGOL Chapter 10 Digital Channel
10-2 MSO5000-E User Guide
To Select the Digital Channel
Press LA on the front panel to enter the LA setting menu. Press Select to open the
channel menu, and rotate the multifunction knob to select the channel. You can
also press Select continuously or enable the touch screen to select it.
Select any of the digital channels (D0-D15). The channel label and waveform of
the selected channel are displayed in red.
Select the user-defined group: selects any group of the channels from the four
user-defined groups. All the channel labels and waveforms in the selected
channel group are displayed in red.
Note: Only the enabled digital channel can be selected, and only the user-defined
channel group that has been grouped can be available.
For how to enable the digital channel/group, refer to descriptions in "To
Enable/Disable the Digital Channel".
For how to define the channel group, refer to refer to descriptions in "Group
Setting".
To Enable/Disable the Digital Channel
Press On/Off to enter the on/off sub-menu of the digital channel.
Enable/disable the channels (D7-D0) simultaneously
Press D7-D0 continuously to enable or disable the channels (D7-D0). You can
also enable the touch screen to tap the digital channel status area at the bottom

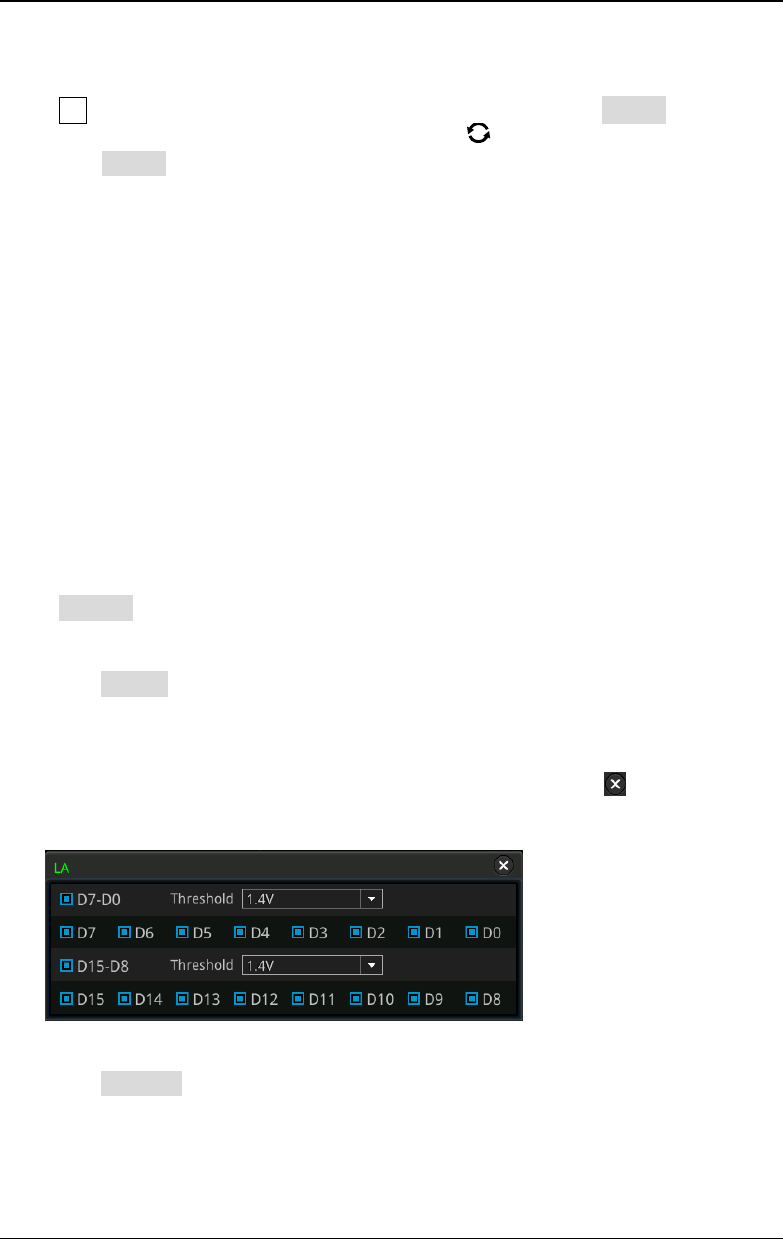

of the screen. The LA window is displayed, as shown in the figure below. In the
window, you can select the LA channel and set the threshold. Tap "D7-D0" to
enable or disable the D7-D0 channels. You can also tap the icon at the
upper-right corner of the window or tap the digital channel status area at the
bottom of the screen again to close the window.
Enable/disable the channels (D15-D8) simultaneously
Press D15-D8 continuously to enable or disable the channels (D15-D8). You
can also enable the touch screen to tap the digital channel status area at the
bottom of the screen. The LA window is displayed. In the window, you can select
the LA channel and set the threshold. Tap "D15-D8" to enable or disable the
D15-D8 channels.
