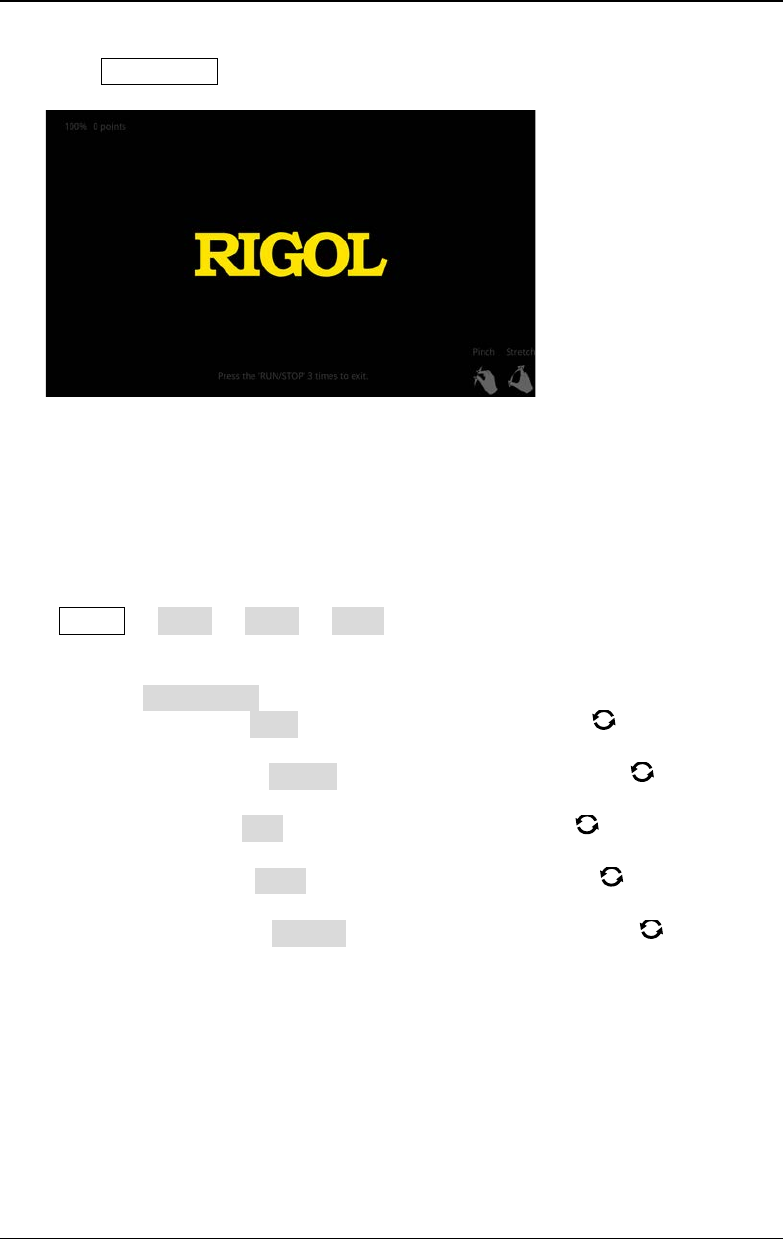

the screen to zoom it out or in to check whether the gestures work normally.
Press RUN/STOP for three consecutive times to exit the touch screen test
interface.
System Time
The system time is displayed at the lower-right side of the screen in "hh:mm
(hour:minute)" format. When you save the waveform, the output file will contain the
time information.
Press Utility More More Time to open the time setting menu.
1. Set the System Time
(1) Press Show Time to open or close the system time interface.
(2) Set "year": Press Year, rotate the multifunction knob directly to set it
or use the pop-up numeric keypad to input the numeric value to set it.
(3) Set "month": Press Month, rotate the multifunction knob directly to
set it or use the pop-up numeric keypad to input the numeric value to set it.
(4) Set "day": Press Day, rotate the multifunction knob directly to set it or
use the pop-up numeric keypad to input the numeric value to set it.
(5) Set "Hour": Press Hour, rotate the multifunction knob directly to set it
or use the pop-up numeric keypad to input the numeric value to set it.
(6) Set "Minute": Press Minute, rotate the multifunction knob directly to
set it or use the pop-up numeric keypad to input the numeric value to set it.
The setting range of each item of the system time conforms to the convention.
Year: 2017 to 2099
Month: 01 to 12
Date: 01 to 31 (28, 29, or 30)
Hour: 00 to 23
Minute: 00 to 59
Second: 00 to 59
