RIGOL Chapter 20 Remote Control
20-6 MSO5000-E User Guide
Remote Control via LAN
1. Connect the device
Use the network cable to connect the oscilloscope to your local area network
(LAN).
2. Configure network parameters
Configure the network parameters of the oscilloscope according to "LAN
Configuration".
3. Search for the device resource

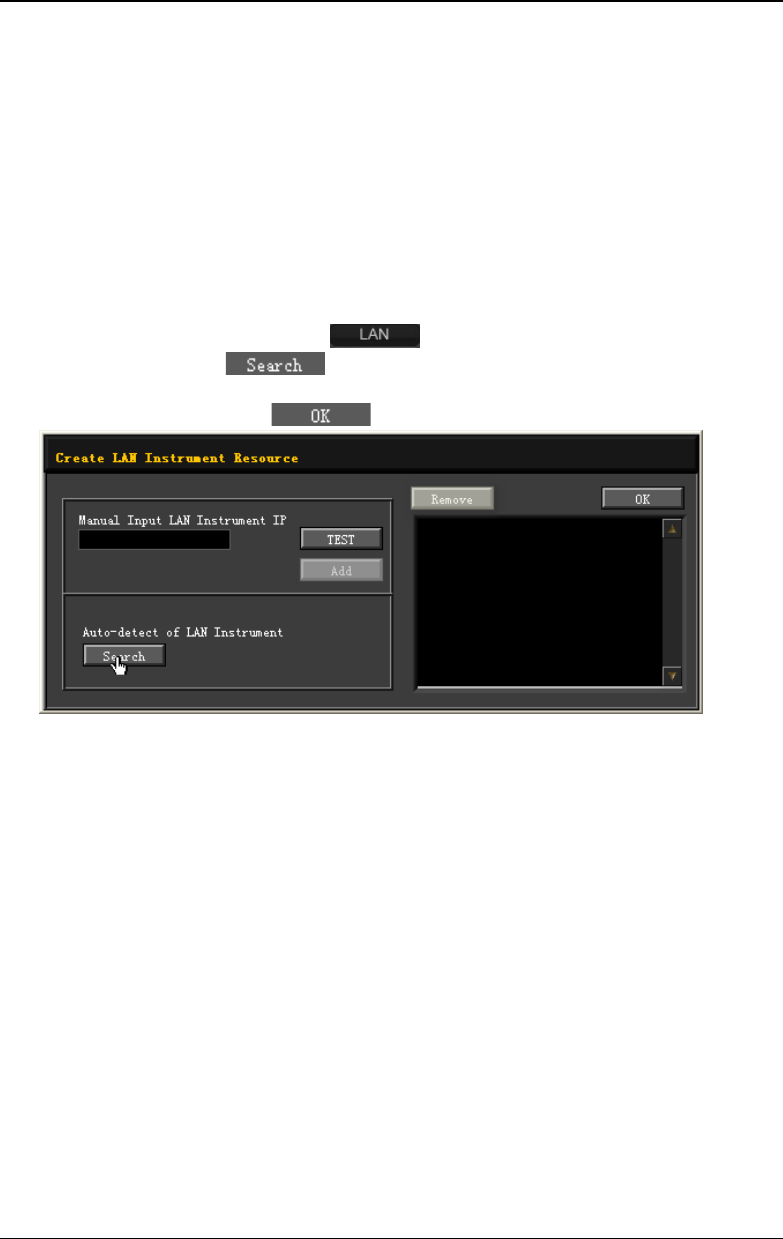

Start up Ultra Sigma and click
to open the panel as shown in the
figure below. Click and the software searches for the instrument
resource currently connected to LAN. The resource found is displayed at the
right of the panel. Click
to add it.
4. View the device resource
The resources found will appear under the "RIGOL Online Resource" directory.
For example, MSO5152-E (TCPIP::172.16.3.14::INSTR).
5. Control the instrument remotely
Right-click the resource name "MSO5152-E (TCPIP::172.16.3.14::INSTR)" and
select "SCPI Panel Control" to turn on the remote command control panel,
through which you can send commands and read data.
6. Load LXI webpage
As this oscilloscope conforms to LXI CORE 2011 DEVICE standards, you can load
LXI webpage through Ultra Sigma (right-click the instrument resource name and
select "LXI-Web"). Various important information about the instrument
(including the model, manufacturer, serial number, description, MAC address,
and IP address) will be displayed on the webpage. You can also directly input
the IP address of the oscilloscope in the address bar of the PC browser to load
the LXI webpage.
