Chapter 1 Quick Start RIGOL
MSO5000-E User Guide 1-15
compressed form, and the timebase message (e.g. ) at the upper section
of the screen would change accordingly. Press down this knob to quickly switch
the horizontal timebase adjustment mode between "Coarse" and "Fine".

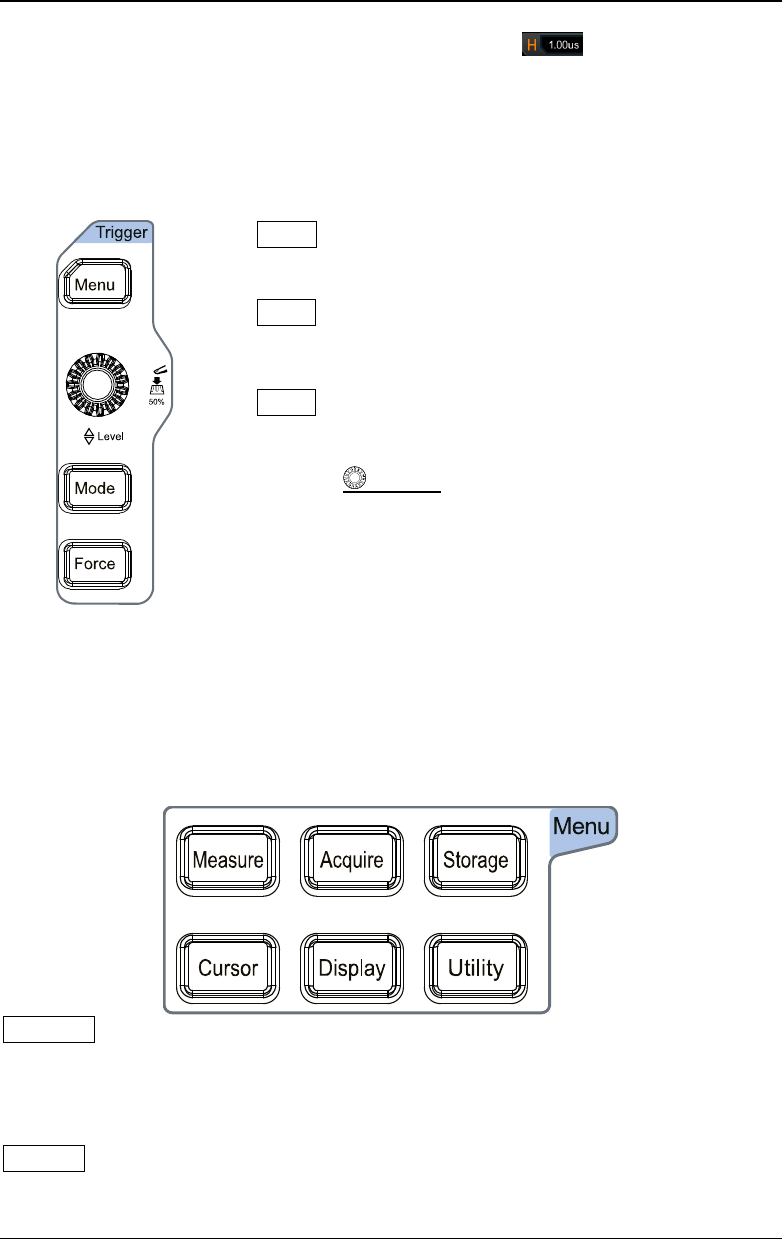

Trigger
Menu: Press this key to open the trigger operation
menu. This oscilloscope provides various trigger types.
Mode: Press this key to switch the trigger mode to Auto
Normal, or Single.
Force: Press this key to generate a trigger signal
forcibly.
Trigger
LEVEL: modifies the trigger level/threshold
level. Turn it clockwise to increase the level, and turn it
counterclockwise to decrease the level. During the
modification, the trigger level line would move up and
down and the trigger level/threshold level value at the
upper-right corner of the screen would change
accordingly. Press down the knob to quickly set the
trigger level to 50% of the waveform peak-peak value.
Function Menu
Measure: Press this key to enter the measurement setting menu. You can set the
measurement source, enable or disable the all measurement function, the statistical
analysis function, and etc. You can make a quick measurement for 41 waveform
parameters.
Acquire: Press this key to enter the acquisition setting menu. You can set the
timebase mode, the acquisition mode, memory depth, and etc.
