User manual

13pF±3pF
10MΩ ±2%
10:1 (Fixed)
CAT II 300VAC
140±2cm
About 56g
（Technical Specifications）
©2012 RIGOL Technologies, Inc. All Rights Reserved.
RP3300A Passive Oscilloscope Probe
Probe Head
CAT II:IEC Measurement Category II. Inputs may be connected to mains (up to 300 VAC)
under Category II overvoltage conditions.
Equipment protected throughout by DOUBLE INSULATION or REINFORCE INSULATION.

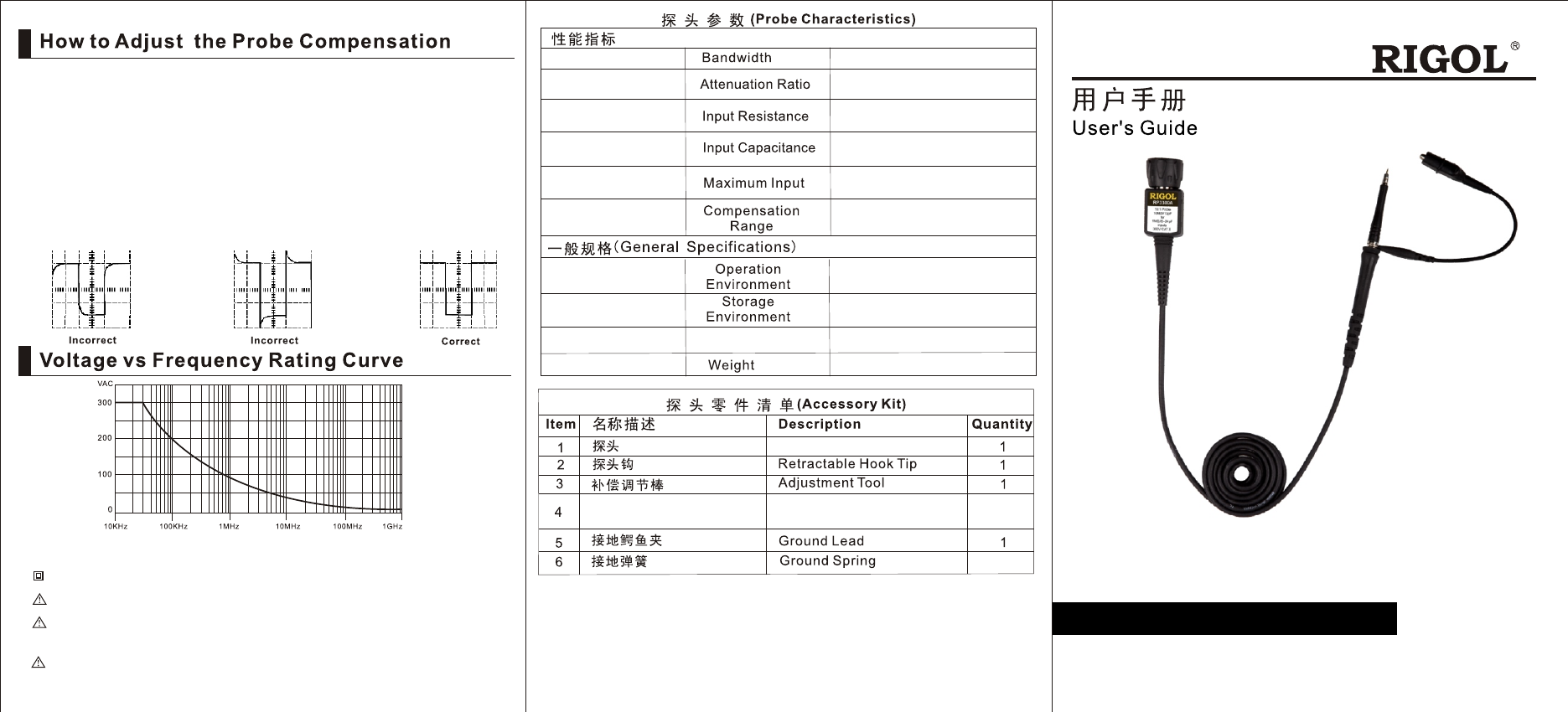

Low-frequency compensation
1 Connect the probe to the calibration signal output terminal and signal
input terminal at the front panel of the oscilloscope.
2 Press Auto at the front panel of the oscilloscope and a 1 kHz square
waveform is displayed on the screen.
3 Use the adjustment tool to adjust the low-frequency adjustment hole to
obtain the flattest pulse (As shown in the figures below).
Cable Length
You are suggested to compensate the probe so as to match its
characteristics to the oscilloscope. The probes can be adjusted for low-
frequency compensation. Low-frequency compensation needs to be done
while first connection.
Marker Rings( yellow
)
, light
blue
Review this manual carefully to avoid injury and prevent damage to this product or any
products connected to it. To avoid potential hazards, use this product only as specified.
The measurement category of a combination of a PROBE ASSEMBLY and an accessory is the
lower of the measurement category of a combination of the PROBE ASSEMBLY and of the
accessory.
If the PROBE ASSEMBLY is used in a manner not specified by the manufacturer, the
protection provided by the PROBE ASSEMBLY may be impaired.
带宽
衰减比
输入阻 抗
输入电 容
最大输 入
补偿范 围
操作环 境
探头尺 寸
存放环 境
探头重 量
RP3300A 无源示波器探头
DC~300MHz
6pF~24pF
-20~60℃，0~90%RH
0~50℃，0~80%RH
标识环 （黄,粉,浅蓝,深 蓝）
8
联系我 们
如您 在使 用此 产 品的 过程 中 有任 何问 题或 需
求， 可与R I GOL联系 ：
服务 与支 持热 线 ：400 620 0002
网址 ：www.rigol.com
Contact Us
If you have any problem or requirement when using
our products, please contact RIGOL Technologies,
Inc. or your local distributors, or
visit: www.rigol.com.
