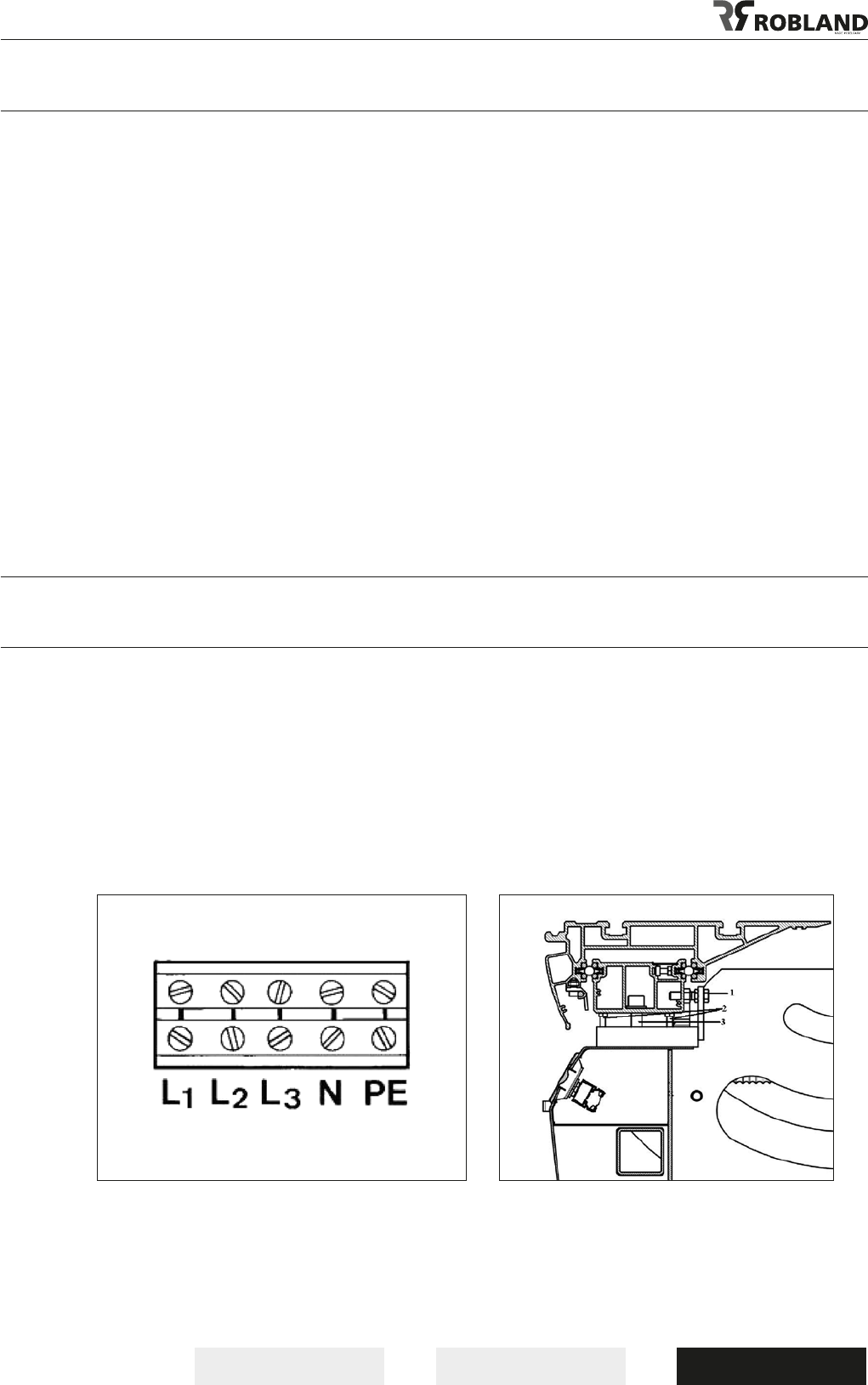

Electrical connection (Fig.3)
The electrical connection must be carried out by a qualied electrician who is able to calculate exactly
the required wire cross-section and capacity of the workshop fuses.
Check that the main voltage of the machine corresponds with the voltage supply to your workshop.
Now open the electrical switch panel and introduce the cable. Connect the 3 phases to the
terminals on the connection block marked L1, L2, L3. If there is a neutral conductor (blue)
it must be connected to the terminal N.
Connect the earth wire (green-yellow) to the terminal marked with the earth symbol PE.
ATTENTION :
- Check rst if the saw spindle runs freely and if all safety devices are tted before starting the
machine.
- If the direction of rotation of the sawblade is not correct, the wires L1 and L2 must be exchanged
(clockwise direction of the spindle is correct).
- For safety reasons this must only be done without the sawblade on the spindle !
THERMAL OVERLOADS
The machine has overload protections on both saw and scoring motors. Should the motor be shut-off
by one of these protectors, it is necessary to wait a few minutes untill the overload has cooled down.
Mounting on the sliding table (Fig.4)
To obtain a good arrangement and function of the sliding table; it is vital that the machine is put on a
right level in both directions, with the help of a level, before putting the sliding table on the machine.
All the adjustments and arrangements are done in the factory. Simply put the table onto the frame with
the two lateral adjustment bolts (1) into the two lugs of the frame. Be sure that the girder rests well in
the height adjustment bolts. Now place the 4 big Allen bolts (3) and tighten well. In order to obtain a
good movement of the wood or the sliding table, the sliding table is set near to 2 mm above the sawing
table. The parallelism between the principal blade and the sliding table, can be corrected by using 2
bolts. After the adjustment, the 4 bolts need to be tightened well with a Torque wrench with a value of
7 kg. The adjustment in height of the sliding table can be done by using 8 bolts (2) but always with the
big bolts closed.
Fig.3 Fig.4
