Operation Manual

– English – Deutsch
10 V1110 NZ3200 - AXIS ERGO
Starting up the machine (Fig.5-6)
Turn the main switch (6.1) to “1” and ensure that the star-delta switch (4) is put in position “star”.
- To start the main saw motor push the start button (3).
- After about 8 seconds put the star-delta switch (4) in position “delta”. This time delay is needed to
let the motor gain its full speed before switching over to “delta”. When you forget to switch over from
“star” to “delta”, the motor will reach its full speed but will have no power and will be damaged.
- The scorer motor is started by pushing the start button (6); this is only possible with the main saw
motor running.
- By pushing the stop button (5) the scorer motor is stopped, when the emergency stop button (1) is
pushed both motors are stopped.
- The main saw motor is equipped with an automatic brake which slows down the motor within 10
seconds as soon as the machine is shut off.
WARNING:
When the machine access door is open, it is impossible to start up the machine.
The RPM indicator lights at the front of the main switch panel show the speed of the saw
spindle as soon as the machine is switched on with the main switch (1).
All fuses can be found inside the electrical switch panel and each time this panel is opened the
machine has to be disconnected from its power supply.

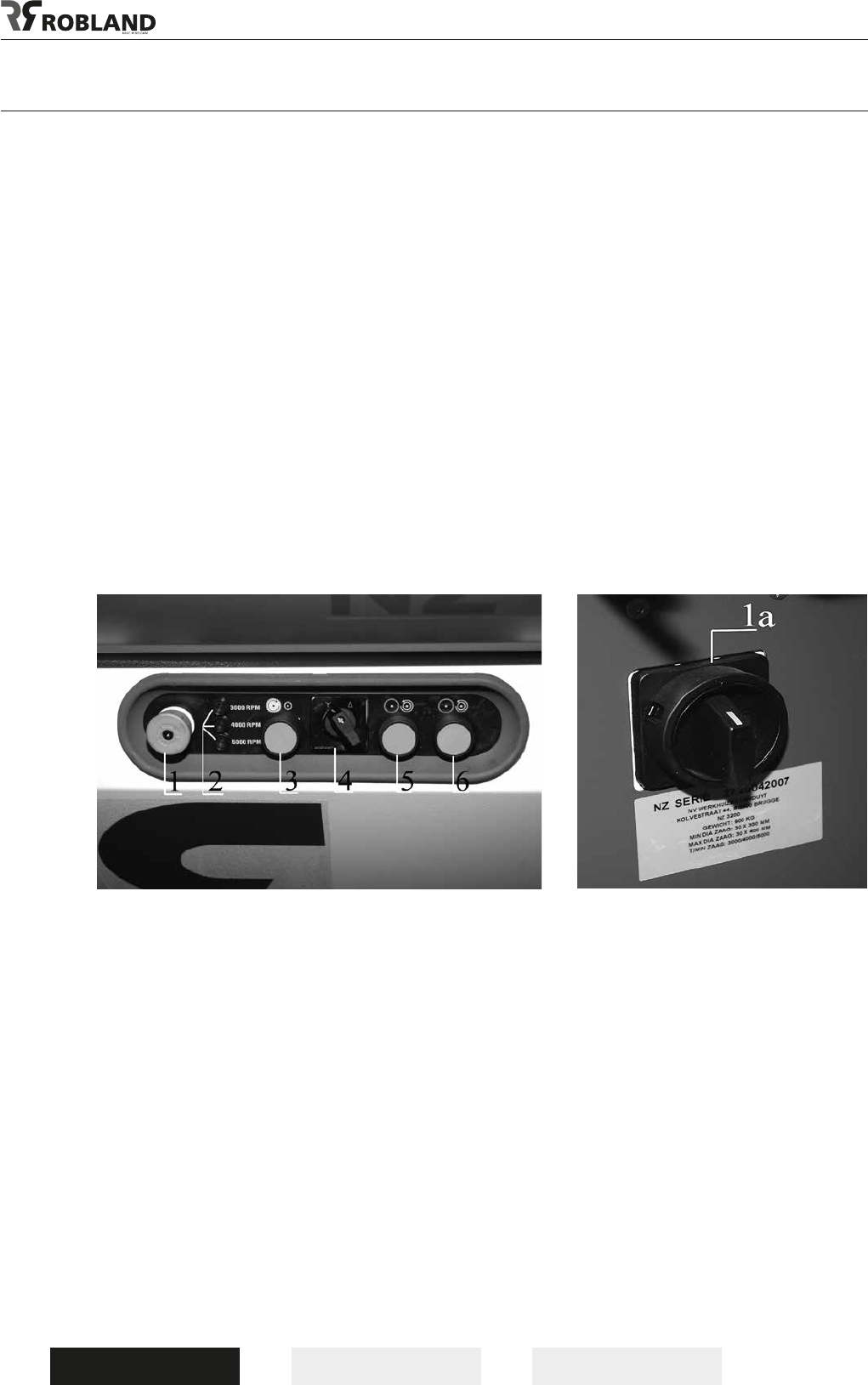

Fig.5 Fig.6
