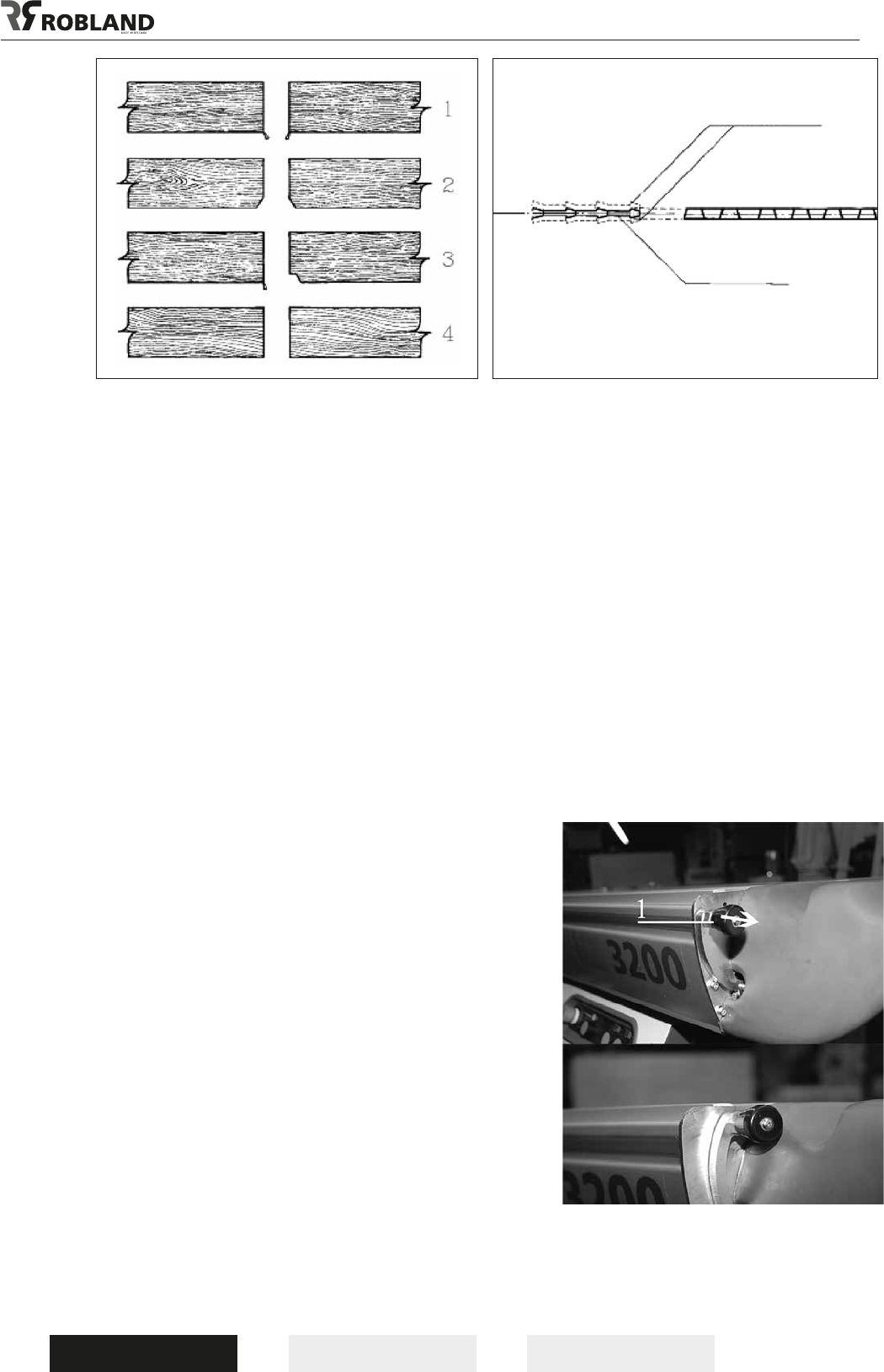

1. The scorer sawblade is below level and does not work properly. There will be chipping on the
interior side.
2. The scorer sawblade is to far up, there will not be chipping but 2 excessive grooves.
3. The scorer sawblade is not aligned properly to the main sawblade. There will be a border on one
side and a waste on the other.
4. Correct setting of the scorer saw
It would be good to t the height of the blade only at a height necessary for an incision that would
cross exactly the laminated layer or overlay.
In case of extended softwood processing without use of the scorer sawblade, it is recommended to
remove the blade to avoid damage and dust projected by the main sawblade.
Blocking the sliding table (Fig.14)
- The sliding table can be blocked in two positions and with one block-system. This is vital for
example by loading of the boards or cutting along the parallel guide. The system is located on the
front-side of the sliding table. Pull the button (1) in your direction and turn to the right to liberate the
table. Pull the sliding table till end, the table will be blocked automatically when arriving in the exact
position. Continue this way to start working.
- When several movements are repeated consecutively,
it is possible that the bearing cage between the two
proles moves a little bit. We can note this as well by
a reducing travelling distance of the sliding table. To
proceed and achieve the normal travelling distance
of the sliding table, you can adapt the position of the
bearing cage: simply push the table with a few short,
light pushes against the buffer stop at the end of the
sliding table until the position of the ball carrier is
adjusted and the table can be moved again along its full
stroke.
Attention: cleaning and maintenance of the sliding table
It is vital to regularly blow away the saw- and other dust,
collected between the sliding table and the bearing
cage. Push the sliding table to the end, to get a better
reach towards the rails, the bearing cage and gliding
tracks. Oil serves to lubricate the sliding rails and is an
extra guarantee of good use and function.
Fig.14
Fig.15 Fig.16
Not good
Good
