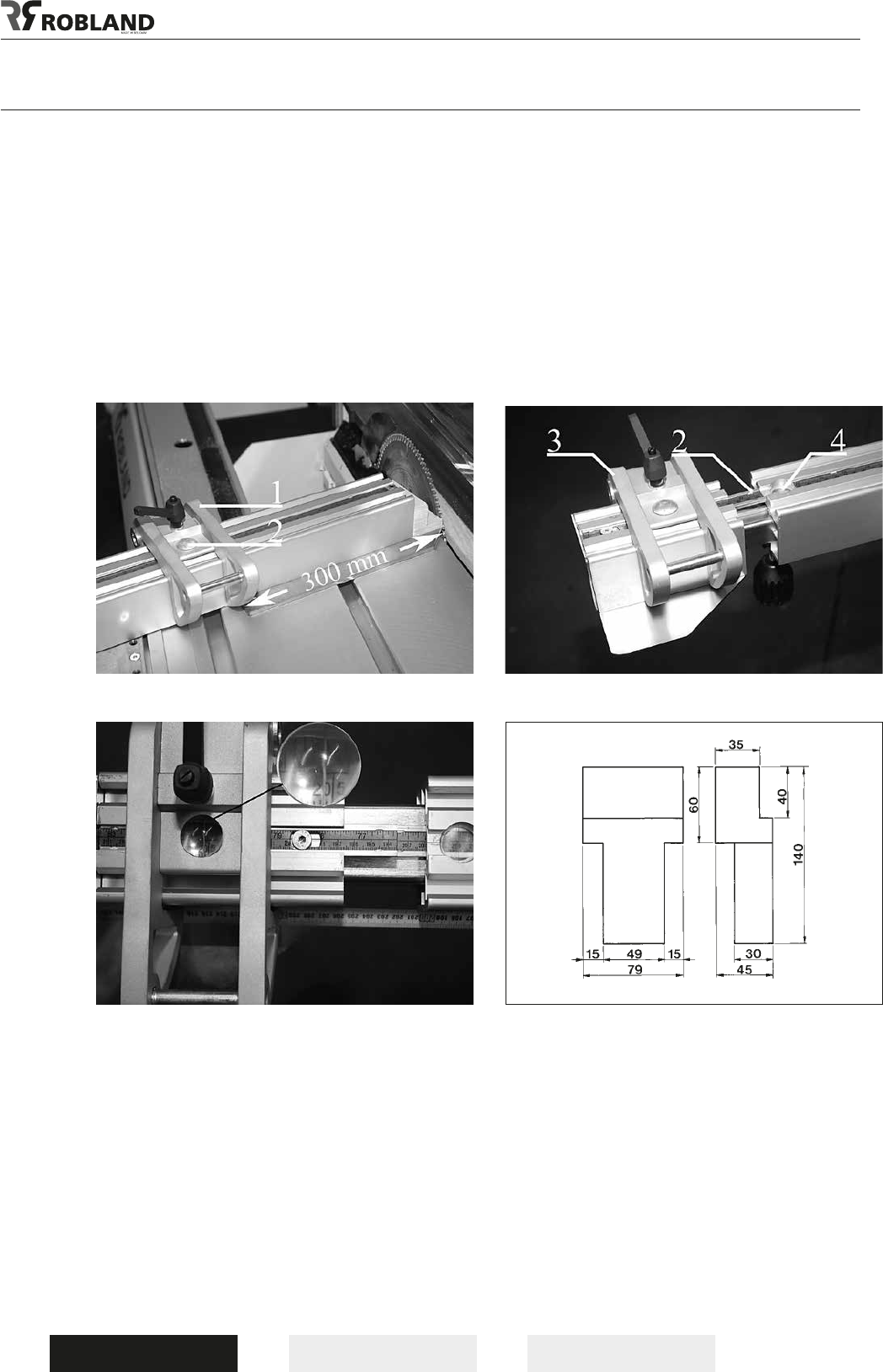

Adjusting the cross-cut fence (Fig.19-20-21)
Each and every time changing a blade with different specications it is vital to calibrate the scale of the
length supported guide according the following application. Block the knob (1) with the 300 mm piece
and adapt the graduated scale till obtaining 300 mm in the lens.(g. 19,2) Continue the same way with
the digital stop option, pressing << SET >> and the stop will be automatically adjusted. Test the setting,
making a little cut just to verify. For the work with the telescopic extension of the guide (permitting to cut
at approximately 3000 mm), place the knob (g. 20-21,3) on the exact measurement of 2050 mm, so
that the scales corresponds on the two different parts. The reading can be done on the index (g. 20,4),
on the xed part of the length supported guide. To verify if the effective measurements correspond to
the regular dimensions mentioned in the index; continue with a test, placing the two knobs at a certain
dimension and check if the maintained measurements correspond with the ones of the index.
When, after some time, the wooden splitter protection cap at the front on the cross-cut fence is cut
away, a new one has to be made according diagram g. 22
Fig.19
Fig.21 Fig.22
Fig.20
