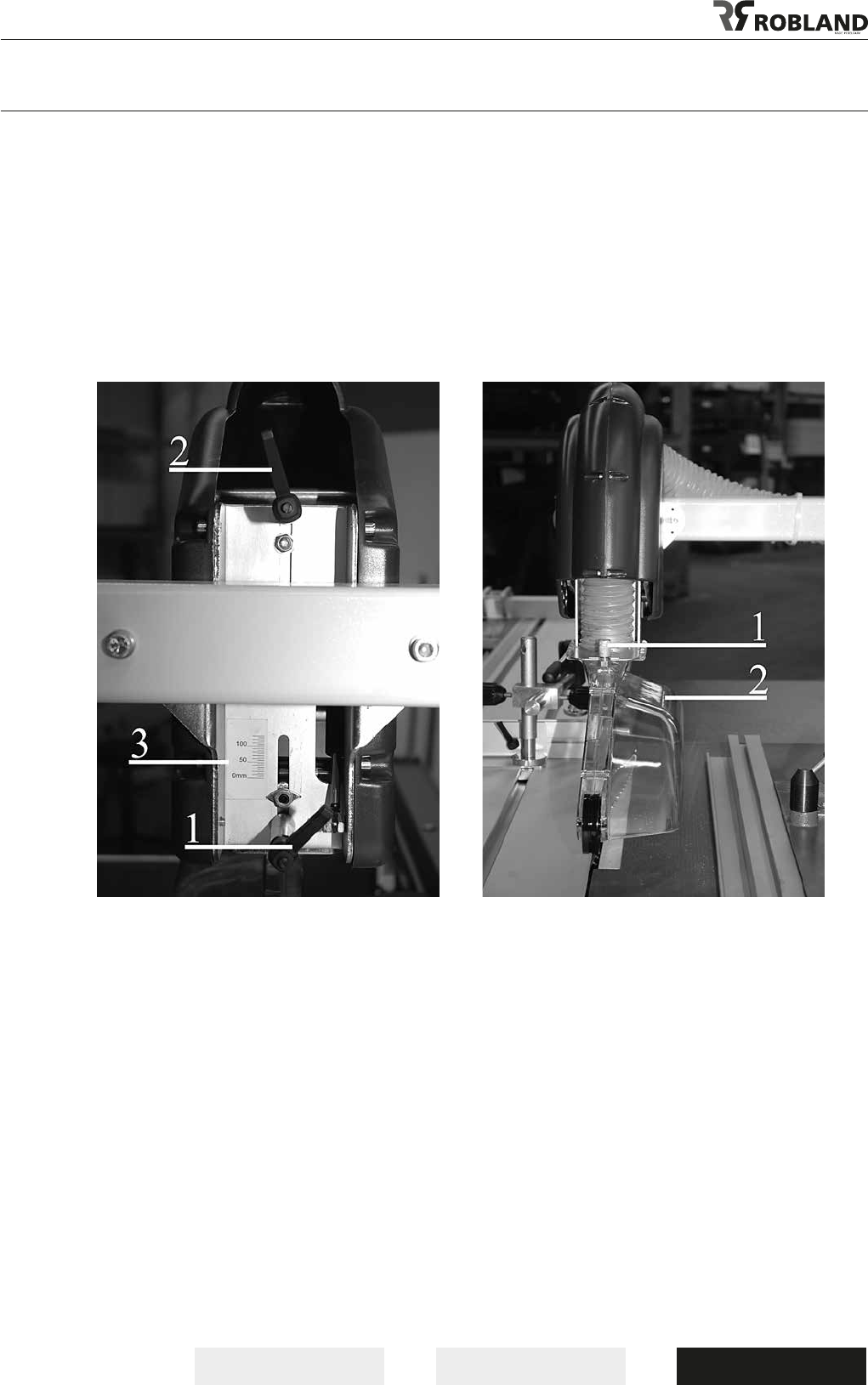

Using the sawguard (Fig.26-27)
According norms and applicable prescriptions, the sawguard always should be positioned, just
allowing the passing of the wood or work pieces.
The adjustment of height can be done with the handle (1 and 2), using the previously adapted
graduated scale (3). The guard can not go under the denite measurement. Allowing to block the
protection to avoid it goes up on its own. The handle (2) as well serves as a height stop to avoid that
the protection goes up to high according to the handled work piece.
The guard has got a shifting skirt, remove the screw (1) then the little skirt and place the larger one,
closing again with the screw.
Attention: it is evident that for special tasks, it is necessary to make or build specic protection.
Fig.26 Fig.27
