Operation Manual

– English – Deutsch
26 V1110 NZ3200 - AXIS ERGO
Manual Axis-Ergo
REFERENCES AND POSITIONING

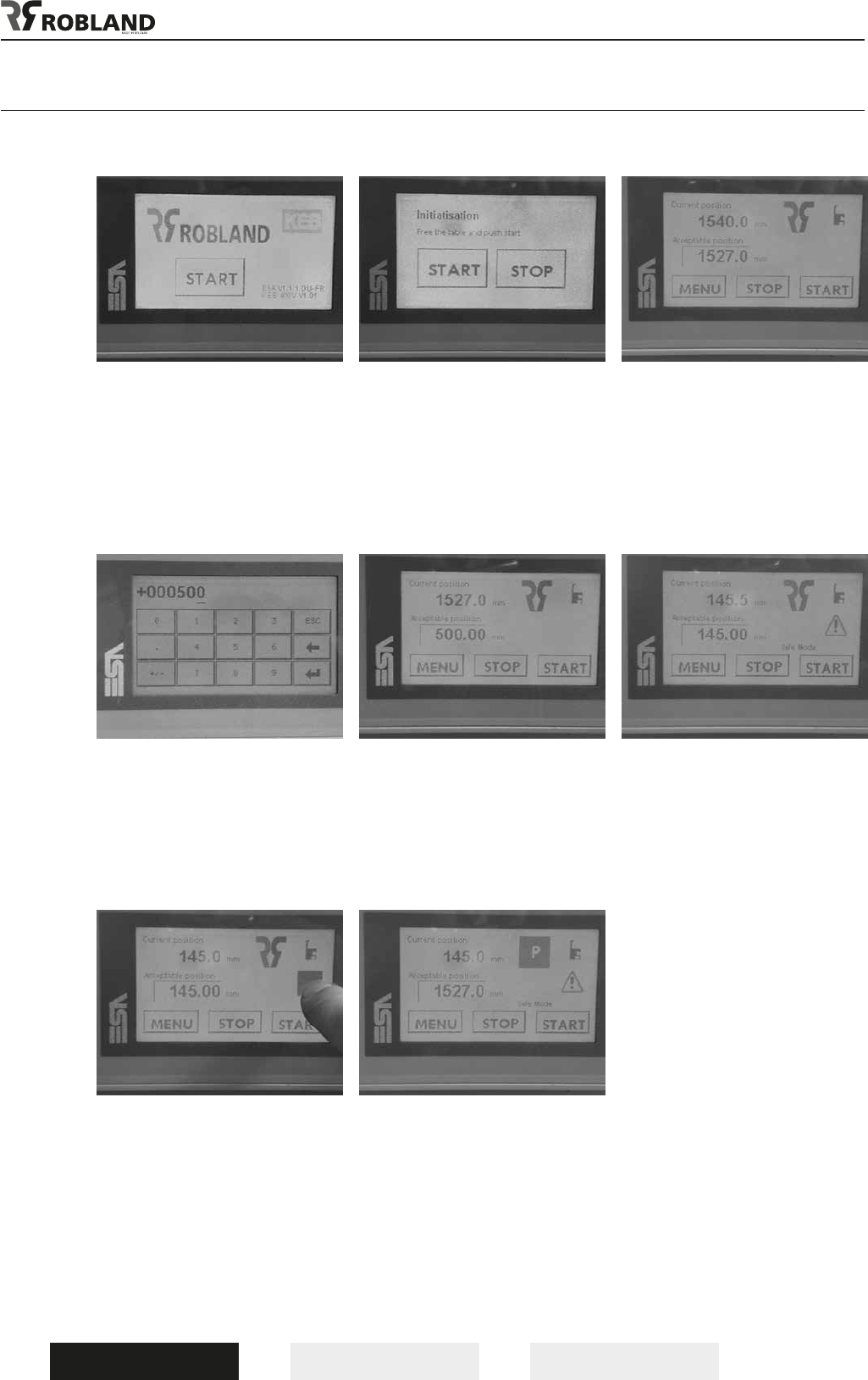

Start Screen: here you can nd
the software data.
Numerical screen: by pressing
the eld under ‘desired
position’, this screen will
appear. Here you can enter
the desired position till 1/10
of a mm. Conrm the desired
position with enter (see arrow).
To reach the desired position in
the safety zone, you’ll have to
press continuously the warning
triangle to move the guide in
the safety zone and arrive at
the desired position.
Screen for Initializing : by
pressing start you can continue
in this programm. The guide is
going to search and establish
its reference. Be sure the table
is free of all objects.
After the conrmation in the
numerical screen, you should
conrm once more with the
START button, to be sure of the
position you’ve entered.
There is as well a park position
congured in the software,
with the value of 1527. You can
reach this position by pressing
the ROBLAND LOGO. Same
remark: when you reach the
safety zone, you’ll have to
press the warning triangle
continuously till the guide has
left this zone.
Main screen: while searching
the reference, you can see
‘searching for reference’.
When this text is gone, you
will be able to move the guide
between 3 and 1527 mm.
These measurements are as
wel the limits of this software.
When the entered value
<150mm you’re entering the
safety zone where a warning
triangle will be displayed and
the movement will stop.
