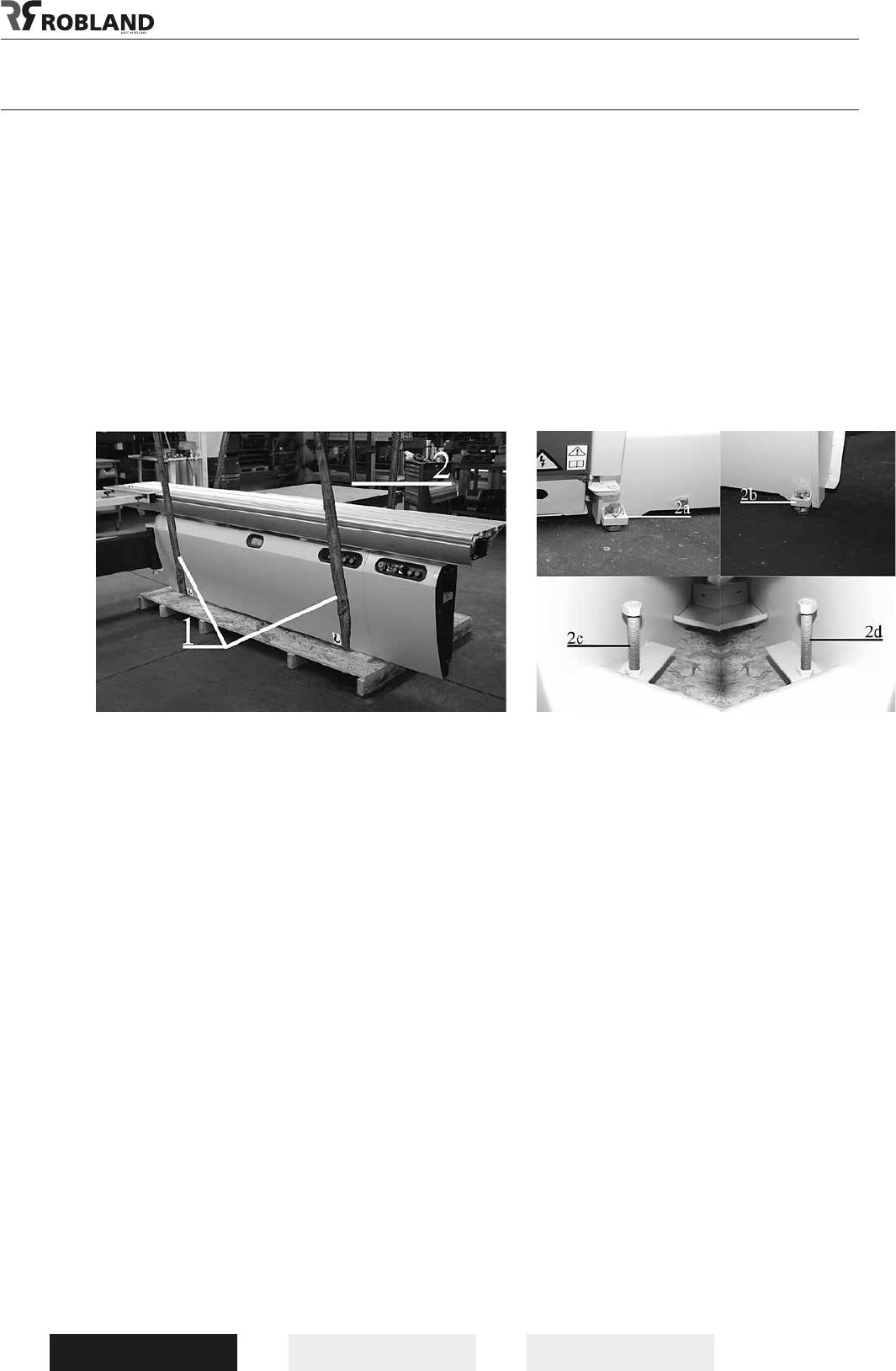

Transportation of the machine (Fig.1-2)
You will receive the machine in a crate made of heavy duty particle board panels, which can be easily
recycled.
After removing the sides and top panels of the crate, steel bars or rods can be placed in the 3 holes in
the machine frame (1).
By using hoist equipment the machine can now be lifted with a small crane of forklift truck, but severe
jolts must be avoided.
When the machine is placed on the ground, it is still possible to move it by removing the front cover
plate and placing a hand pallet truck in the two openings in the front of the frame (2).
The machine must be leveled in both directions to assure good sliding motion of the sliding table.
Two leveling bolts must be put in before the machine is placed on the oor : one bolt under the pivot of
the telescopic arm and the second under the electrical switch panel.
These bolts have to be set with the bolt head upside down. The two big leveling bolts (2) can be
reached by opening the machine access door. If possible, the machine must be placed on rubber
plates which act as shock absorbers and reduce the noise level.
Fig.1 Fig.2
