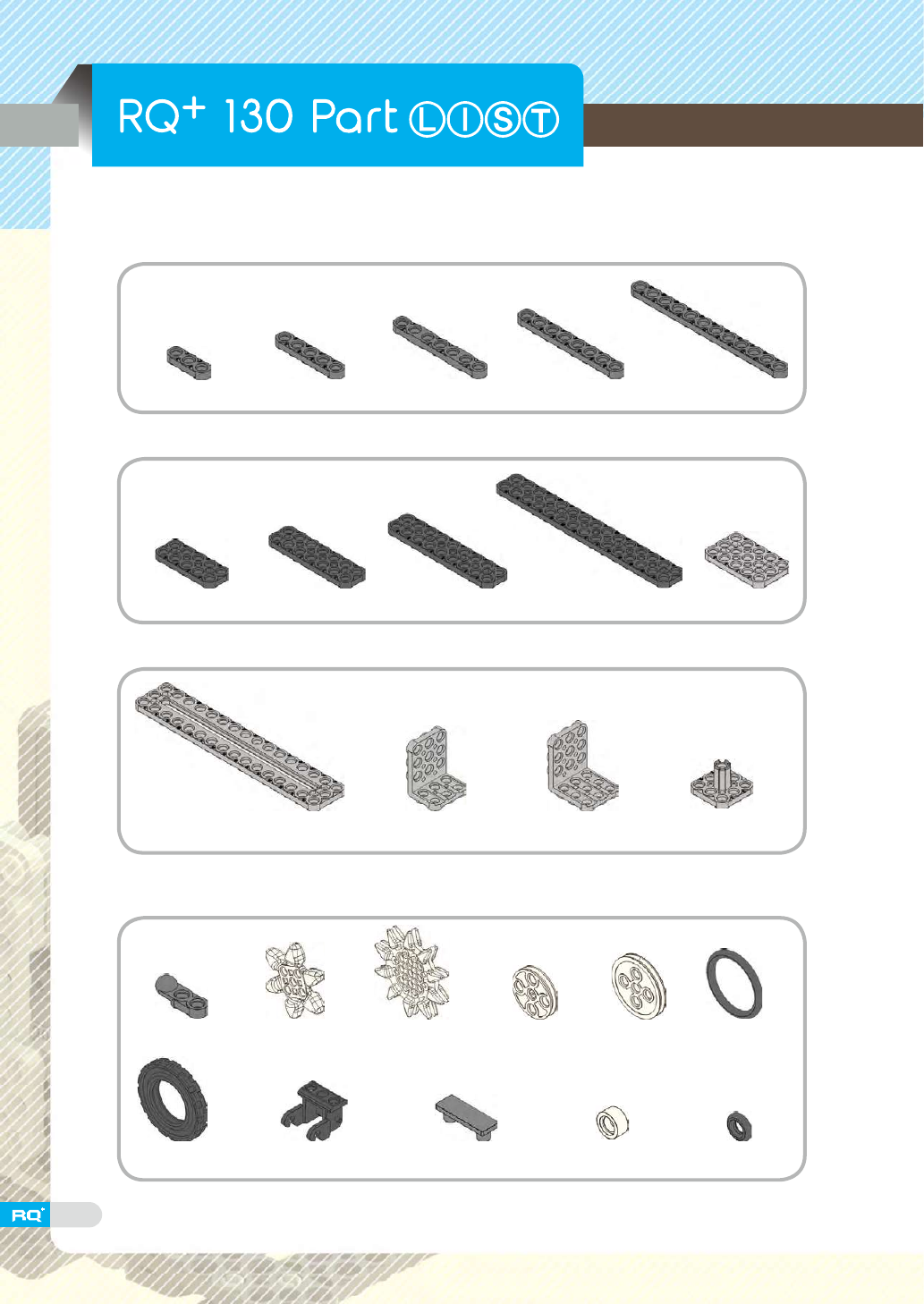

Part List

Frame

Gears / Wheels

1×3 frame

2×5 frame

Tire

3×16 slide frame

1×5 frame

2×7 frame

Caterpillar

X45

Ball frame

Small gear

Big gear

Small wheels

Wheel

Rubber ring

1×7 frame

2×9 frame

Rubber pad

X23

3×5 L frame

1×8 frame

1×12 frame

2×15 frame

Spacer

3×5 frame

Locking ring

3×6 L frame

Boss gear frame

PAGE 1
Frame 1×3 frame X2 2×5 frame X2 1×5 frame X2 1×7 frame X2 2×7 frame X2 3×16 slide frame X2 1×8 frame X2 2×9 frame X2 3×5 L frame X2 1×12 frame X2 2×15 frame X2 3×5 frame X3 3×6 L frame X2 Boss gear frame X2 Gears / Wheels Ball frame X2 Small gear X2 Big gear X2 Tire X4 08 Caterpillar X45 Small wheels X4 Wheel X2 Rubber ring X2 Rubber pad X23 Spacer X4 Locking ring X8
PAGE 2
Electronics Part Smart servo (ID02,03) X2 IR sensor X2 Battery case X1 Serial board X1 Rivet Tool / Rivets Rivet tool X1 2s rivet 3s rivet Joints and Others Hinge A X3 Hinge B X3 Joint frame X2 Rubber ring X3 String X2 Dice X1 Hinge A and Hinge B can be distinguished by its colors and letter A or B written on. Be careful that Hinge A is white color but it is described as black color in RQ+120 and RQ+130.
