Installation Instruction RSEI 114

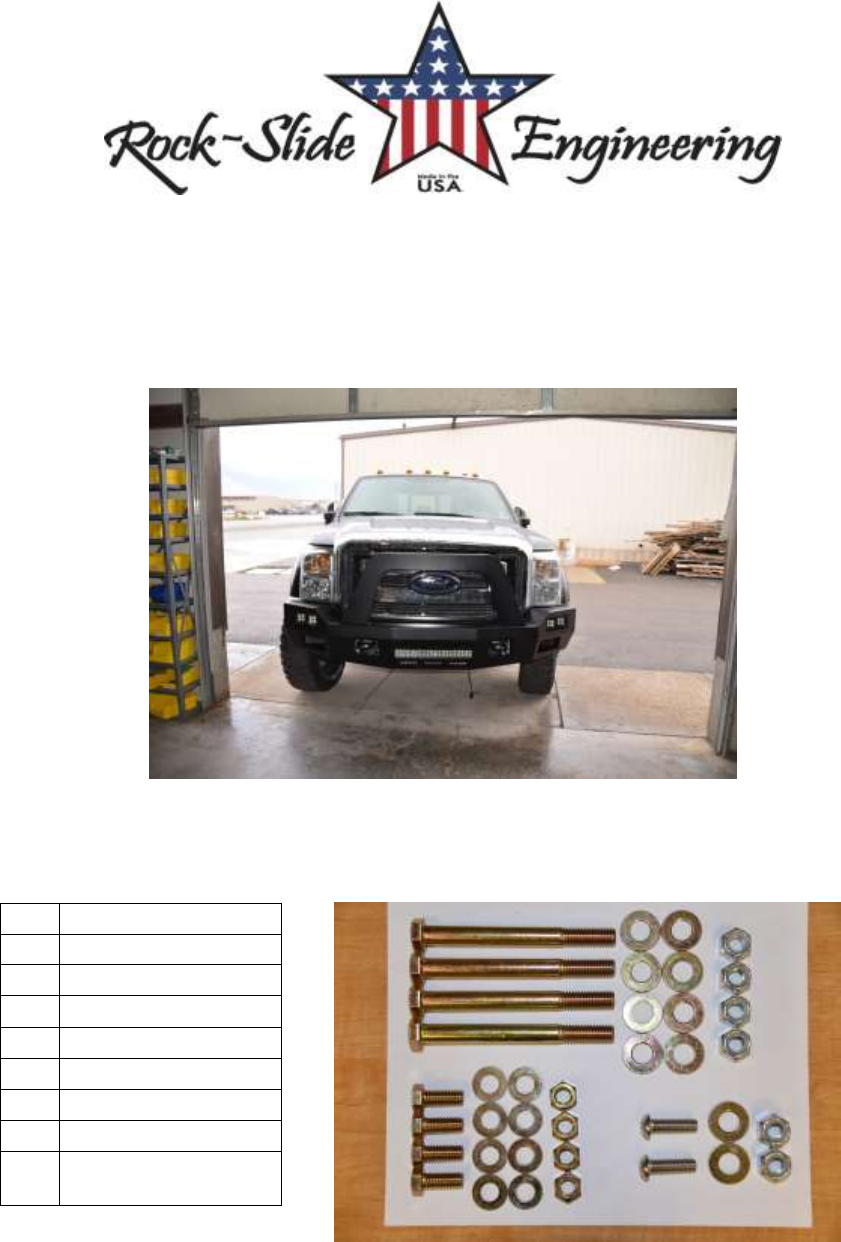

Ford F-250, F-350, F-450 Front Bumper Installation

FB-F-100-SD-SRW, FB-F-101-DRW

Parts List

QTY

DESCRIPTION

Front Bumper

½” x 5” Bolts

½” Nuts

½” Washers

7/16” x 1” Bolts

7/16” Nuts

7/16” Washers

½” x 1.5” SS Button

Head Bolts

Summary of content (5 pages)

PAGE 1
Ford F-250, F-350, F-450 Front Bumper Installation FB-F-100-SD-SRW, FB-F-101-DRW Parts List QTY 1 4 6 10 4 4 8 DESCRIPTION Front Bumper ½” x 5” Bolts ½” Nuts ½” Washers 7/16” x 1” Bolts 7/16” Nuts 7/16” Washers ½” x 1.
PAGE 2
Optional Bull Bar QTY 1 8 8 DESCRIPTION Bull Bar ½” x1.5” Bolts ½” Washers *If any parts listed are missing or damaged please call Rock-Slide Engineering @ 435-752-4580 prior to installation Bumper Installation 1. (OPTIONAL IF INSTALLING LIGHTS) Install desired aftermarket lights in center and side light pockets.
PAGE 3
Side hole light pockets 2. Be sure to run the light wires through the hole to finish the light installation 3. If purchased with the optional Bull Bar, attach the Bull Bar before installing the bumper a.
PAGE 4
. Remove the factory bumper. Save the mounting hardware 5. Mount the bumper to the truck using the factory hardware and the factory bracket attached to the tow hooks. Bolt from the back through the factory bracket into the bumper on both frame rails Tow hook bracket and factory hardware from the bracket into the bumper 6. Bolt from the outer brackets on both sides into the bracket on the bumper using the 7/16” nuts, bolts and washers Side brackets, looking from the front tire wheel well.
PAGE 5
7. Install lower stiffening bracket from the bumper to the inside of the frame rail on both frame rails a. Attach the bracket to the bumper from the bottom up using the ½” x 1.5” Button Head Bolts, washer and nut b. Attach the bracket to the truck through the frame rail using the ½” x 5” Bolt, washer, nut Bolt through the frame rail into the bracket, then washer, nut Button Head bolt from bumper through bracket 8. Complete wiring on any installed lights 9.
