Congratulations and thank you for yourpurcahse of the Rocktron VFS2 Dual Footswitch. Although the VFS2
has many uses, it is mainly used to switch channels and turn effects on/off on your guitar amplifier
The LED ON/OFF status changes each time you
press a switch. Press a switch once, it is ON and the
LED will lite. Press the switch once more and it
will turn OFF and the LED will go out.
THE LED indication light provides confirmation
“at-a-glance” that the switch is either ON or OFF.
A 9-Volt Battery powers the LED’s and is
accessable through the battery compartment
located on the bottom of the VFS2.
Use a STEREO 1/4” cable to make the connection
from the pedal to the footswitch jack on your
amplifier or rack unit.
Use the VFS2 to change channels on your
amplifier and turn ON/OFF effects (such as chorus
or reverb).

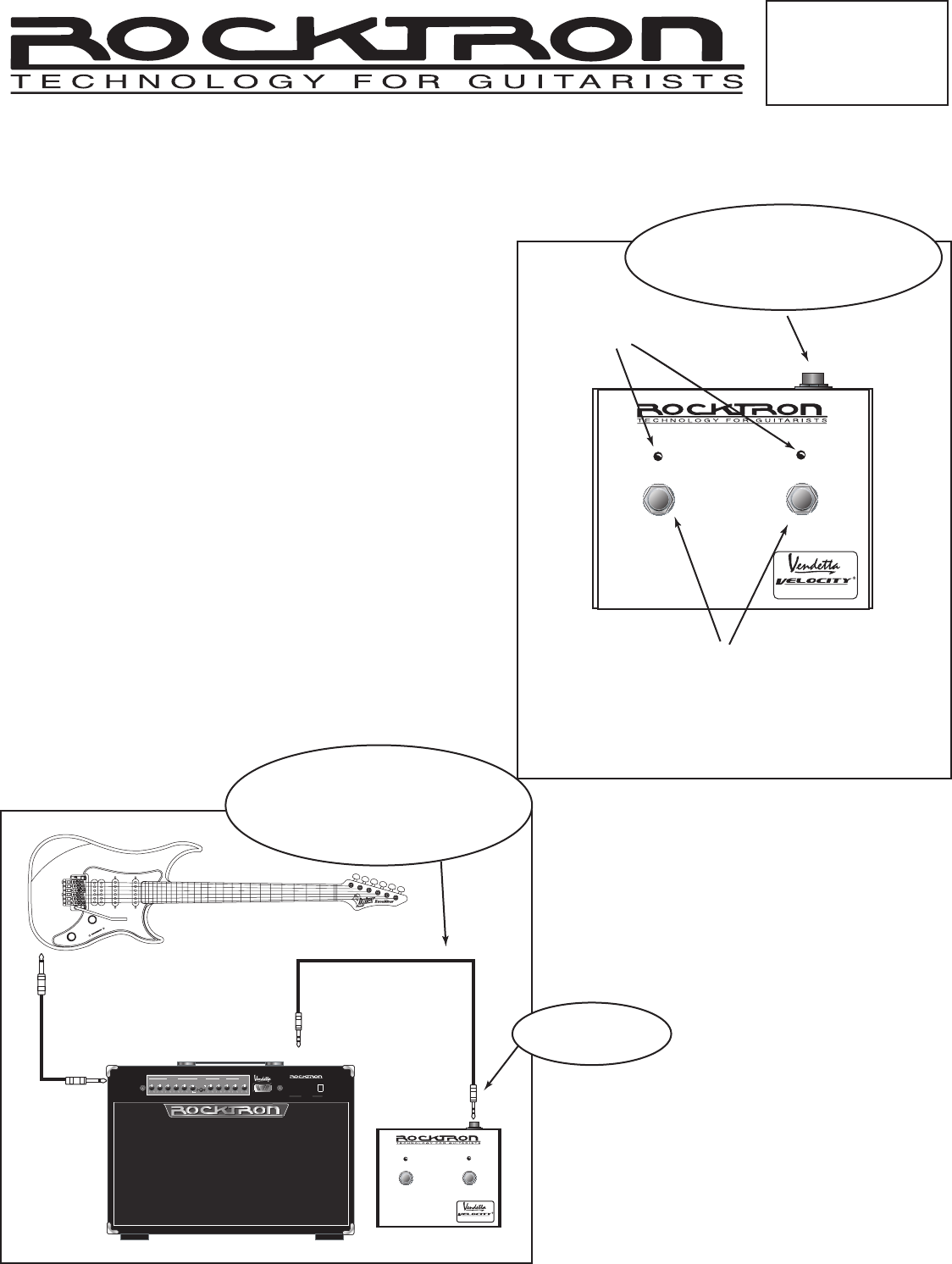

VFS2
FOOTSWITCH
Guitar
Output
Amp
Input
Footswitch
Jack
Footswitch Jack
on back of amp
USE A STEREO
1/4” CABLE
FOOTSWITCH ON/OFF
SWITCHES. PRESS TO TURN
ON/OFF. WHEN ON LED
WILL BE “LIT”. WHEN OFF
LED WILL NOT BE LIT.
ON/OFF LEDS
