20. Physical Dimensions and Weight
Weight 1000g / 2.2lb
DIN Rail Use 35mm DIN rails according to EN 60715 or EN 50022 with a height of 7.5 or 15mm.
The DIN rail height must be added to the unit depth (127mm) to calculate the total required
installation depth.
Installation Clearances See section 2.

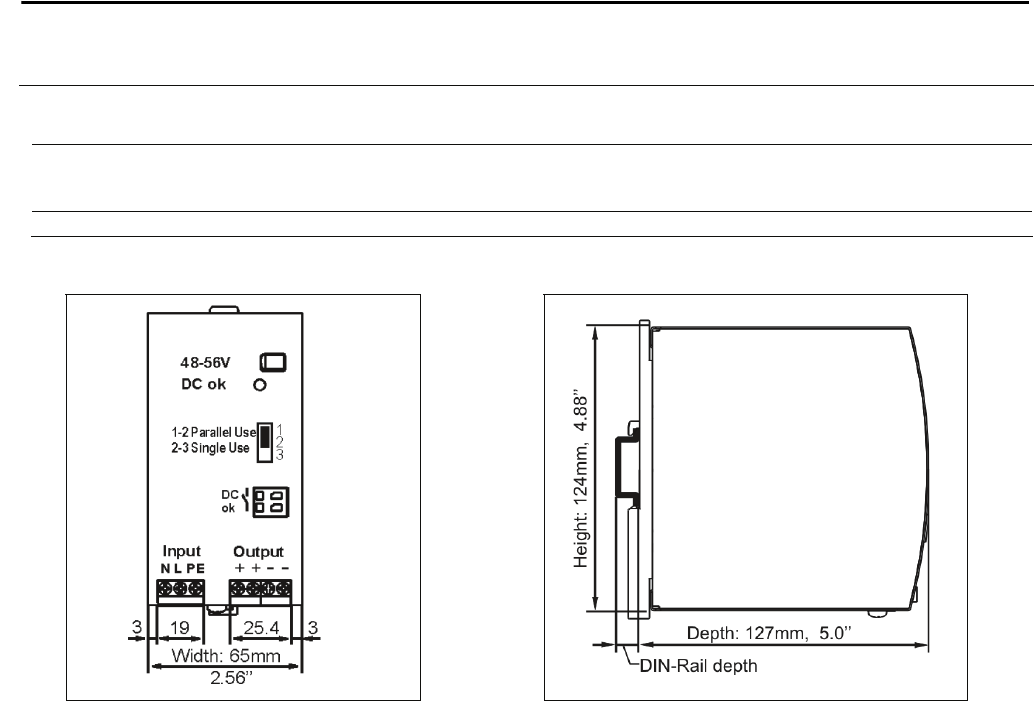

Fig. 20-1 Front view Fig. 20-2 Side view
