Appendix B Program a 1769-HSC Module, CompactLogix Controller, and 845F Incremental Encoder with RSLogix 5000 Software
Configure the 1769-HSC
Module
When the 1769-HSC module is added to the CompactLogix project, input,
output, and configuration tags are automatically created in the
Controller Tags area.
1. In the Controller Organizer, double-click the 1769-HSC module.
The Module Properties dialog box appears.

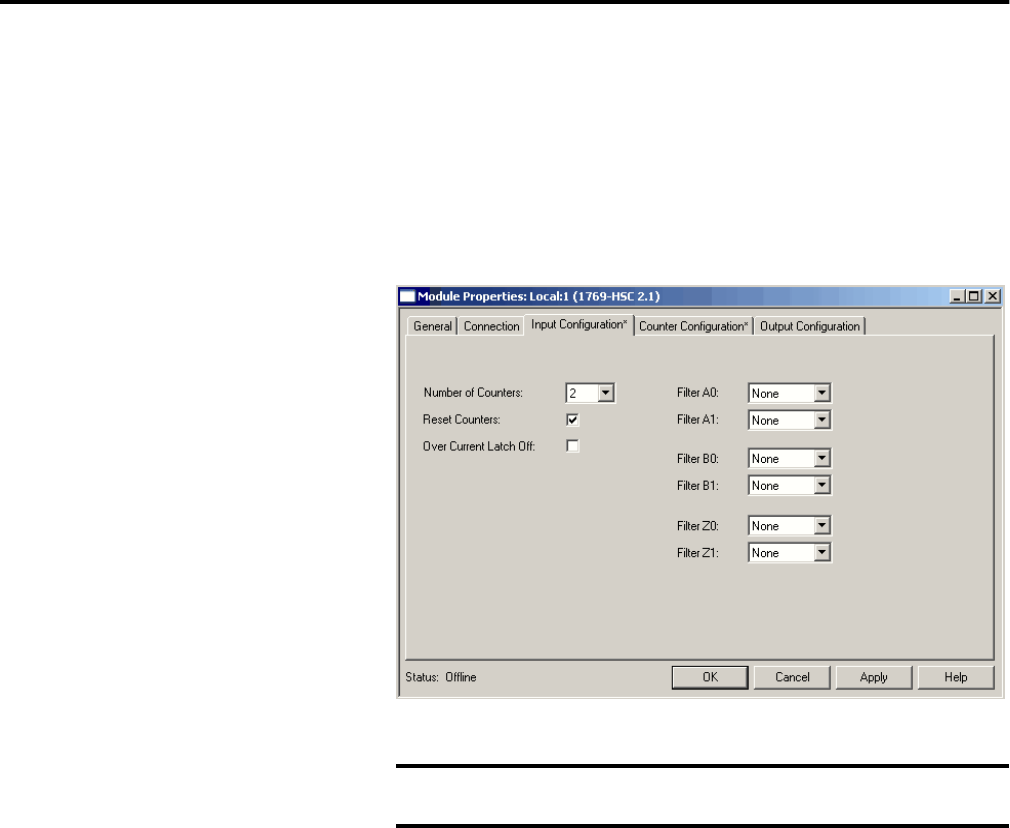

2. Click the Input Configuration tab.
3. The Number of Counters defaults to 2.
4. Click the Reset Counter box to select the designated number of counters
for the reset counter functionality.
You select the actual counter on the Counter Configuration dialog box.
5. Click the Counter Configuration tab.
IMPORTANT
The contents of counter 1 must be cleared to save any changes if
the number of counters is changed to 1.
