Rockwell Automation Publication 1769-UM006E-EN-P - July 2013 137
Program a 1769-HSC Module, CompactLogix Controller, and 845F Incremental Encoder with RSLogix 5000 Software Appendix B

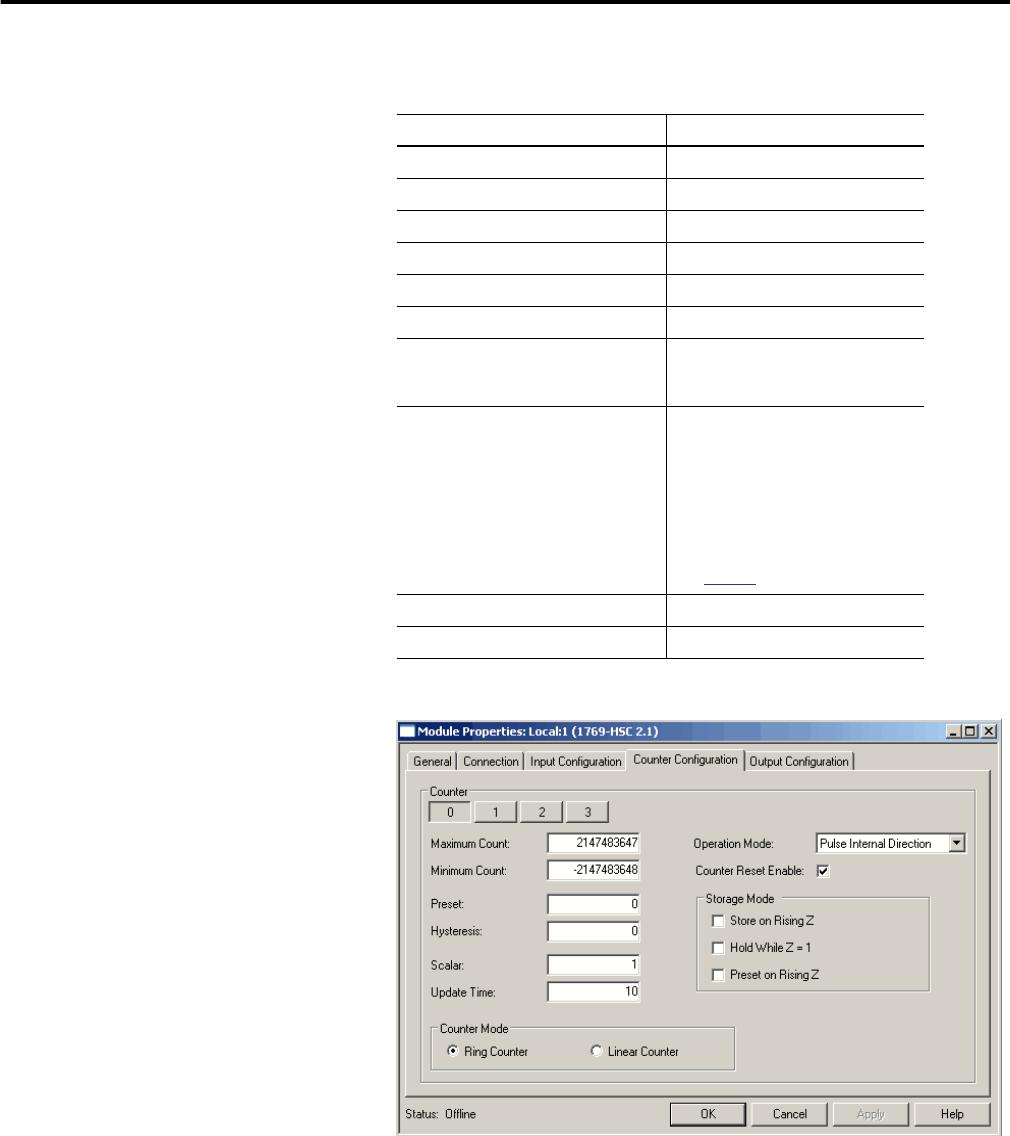

6. Use this information to complete the Counter Configuration tab.
Your Counter Configuration tab should look like the example.
7. Click Apply.
8. Click the Output Configuration tab.
Option Value
Maximum Count 1,200,000
Minimum Count 0
Preset 0
Hysteresis 0
Scalar 1
Update Time 1
Operation Mode Choose an operation mode from the
pull-down menu, such as Pulse
Internal Direction.
Counter Reset Enable This box displays for 1769-HSC/B
modules only.
The checkbox defaults with a check
mark if the selection bit is enabled
for this counter on the Add-On
profile.
Clear the checkbox to disable this
counter from resetting.
See
page 73 for more details.
Storage Mode Nothing selected
Counter Mode Ring Counter
