138 Rockwell Automation Publication 1769-UM006E-EN-P - July 2013
Appendix B Program a 1769-HSC Module, CompactLogix Controller, and 845F Incremental Encoder with RSLogix 5000 Software

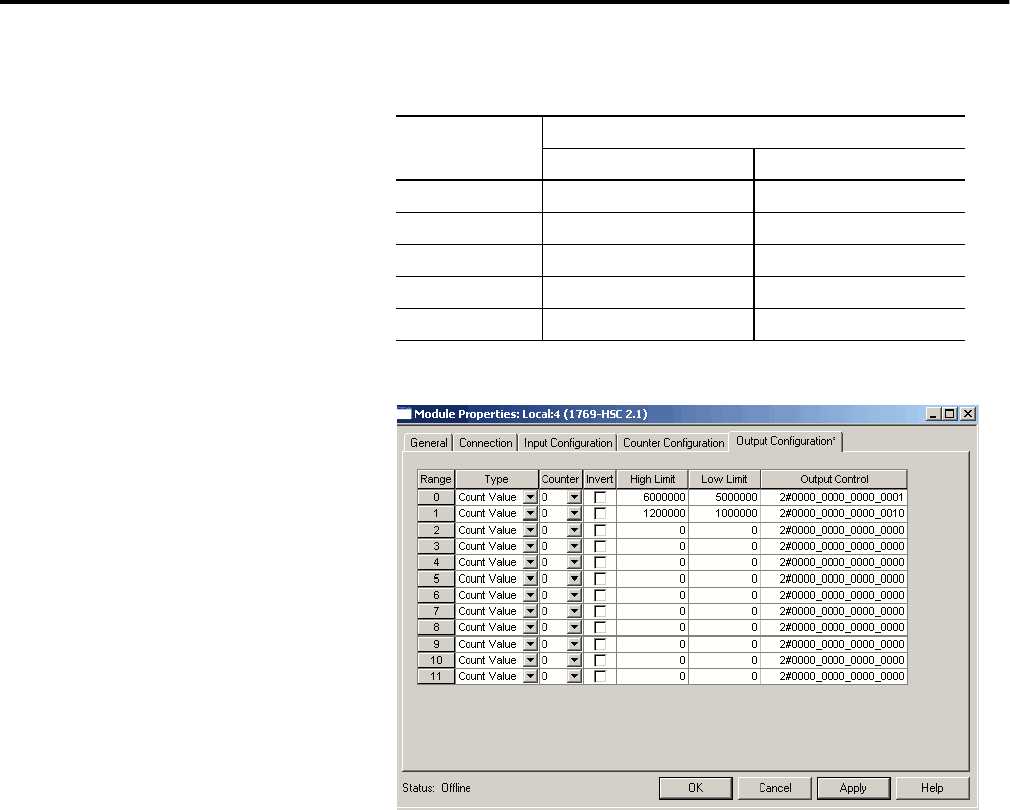

9. Use this information to complete the Output Configuration tab.
Your Output Configuration tab should look like the example.
10. Click Apply.
Option Value
Range 0 Range 1
Type Count Value Count Value
Counter 0 0
High Limit 600,000 1,200,000
Low Limit 500,000 1,000,000
Output Control 2#0000_0000_0000_0001 2#0000_0000_0000_0010
