Rockwell Automation Publication 1769-UM006E-EN-P - July 2013 143
Program a 1769-HSC Module, MicroLogix 1500 Controller, and 845F Incremental Encoder with RSLogix 500 Software Appendix C
Add a 1769-HSC Module to
a MicroLogix 1500 System
The example in this section uses a MicroLogix 1500 controller to add a
1769-HSC module into the MicroLogix 1500 system by using
RSLogix 500 software.
1. Start the RSLogix 500 software.
2. Click New.

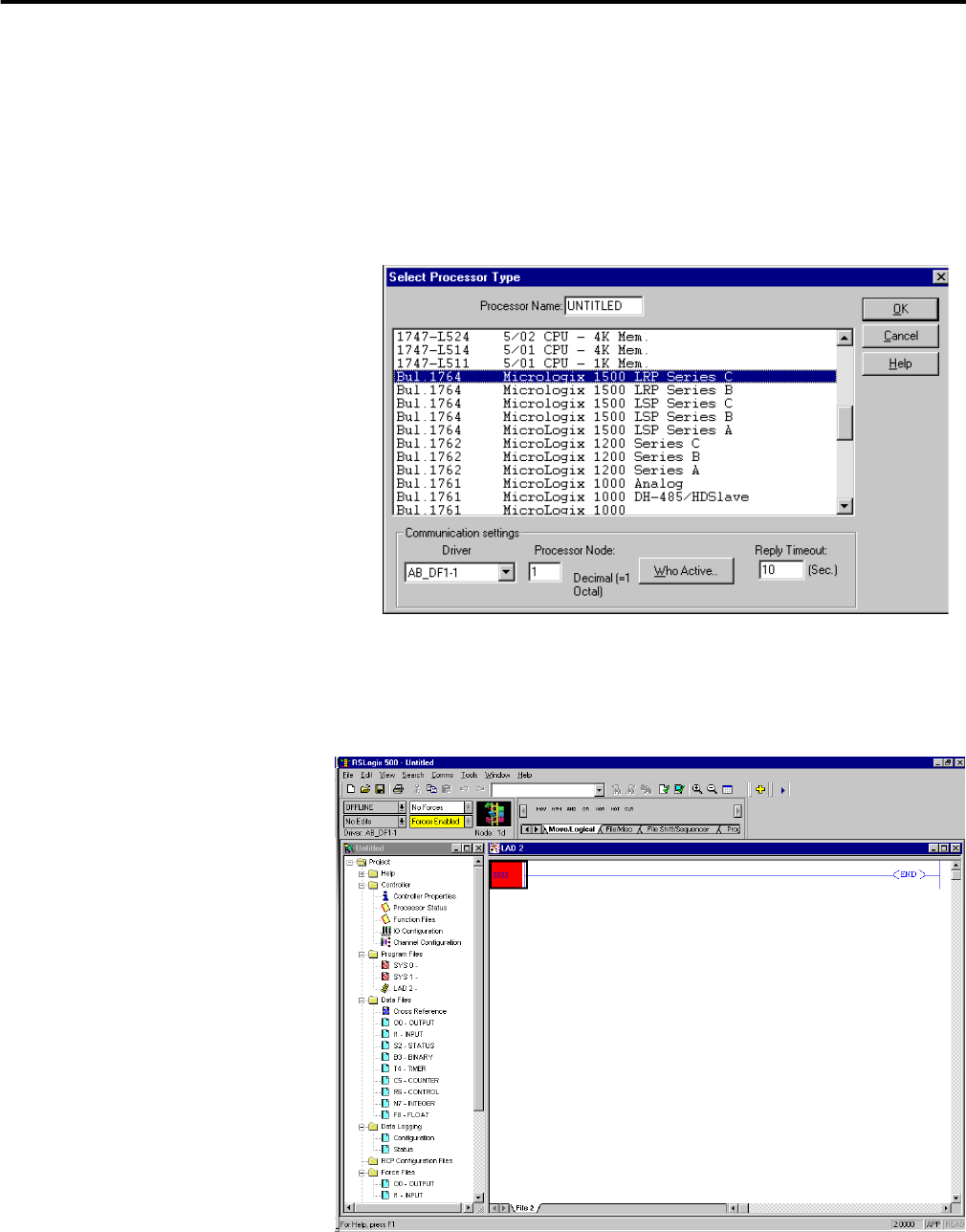

The Select Processor Type dialog box appears.
3. Select the correct controller type (Bul.1764 MicroLogix 1500 LRP
Series C, for this example).
4. Type a Processor Name and click OK.
The project window appears.
