Rockwell Automation Publication 1769-UM006E-EN-P - July 2013 147
Program a 1769-HSC Module, MicroLogix 1500 Controller, and 845F Incremental Encoder with RSLogix 500 Software Appendix C

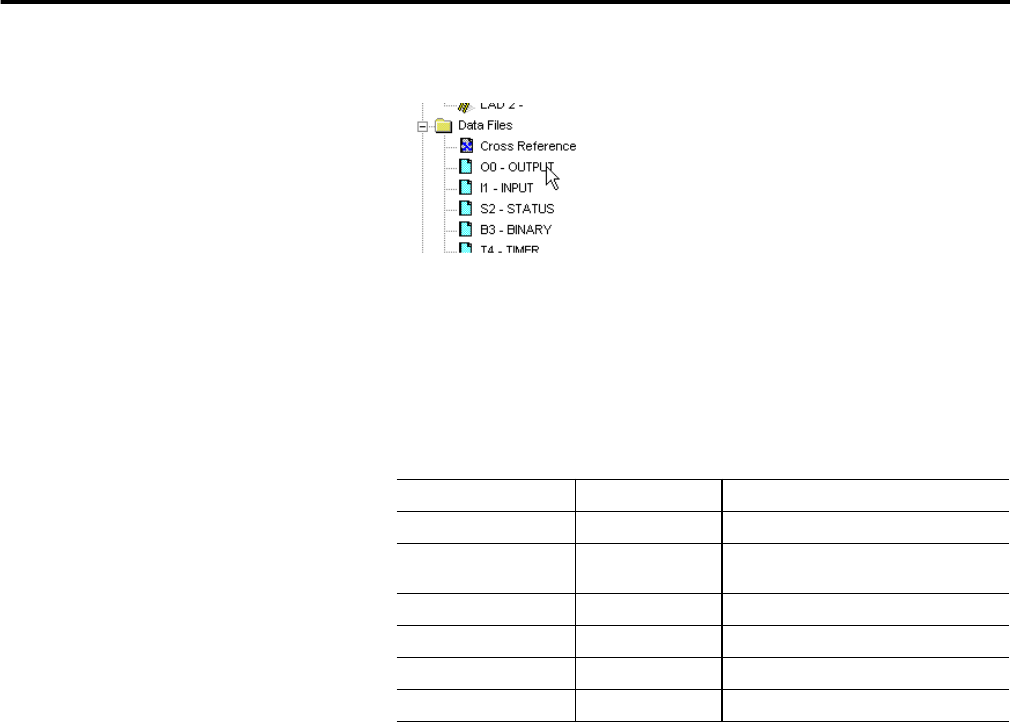

7. In the Project Menu, under Data Files, click Output.
The 34 words of the output image open. Addresses for these 34 words are
Output Word [0] through Output Word [33]. In this example, only the
first six words are modified. Output Word [6] through Output Word [33]
are for Counters 1–3 and Ranges 12–15, which we are not using in this
example.
8. Use this information to configure the first six Output words.
Output Data File Decimal Value Description
Output Word [0] 0 Not used
Output Word [1] 3 Enables Outputs 0 and 1 to be controlled
by the 1769-HSC module's ranges.
Output Word [2] 3 Enable Ranges 0 and 1
Output Word [3] 0 Not using Interrupts
Output Word [4] 0 Not using Interrupts
Output Word [5] 1 Enable Counter 0
