Rockwell Automation Publication 1769-UM006E-EN-P - July 2013 85
Module Configuration, Output, and Input Data Chapter 4
These values, which represent a count value or rate value, depending upon the
programed Type, are used for range comparison. When the rate value is equal to
Range0To11[n].HighLimit or Range0To11[n].LowLimit, Rangen changes state,
becoming either active or inactive, depending upon the setting of the
Range0To11[n].Invert bit.
Range Output Control (Range0To11[n].OutputControl)
TIP
Range0To11[n].HighLimit must be greater than Range0To11[n].LowLimit
or a configuration error results.
IMPORTANT
The Range Output Control words do not apply to the L23E packaged
controller.

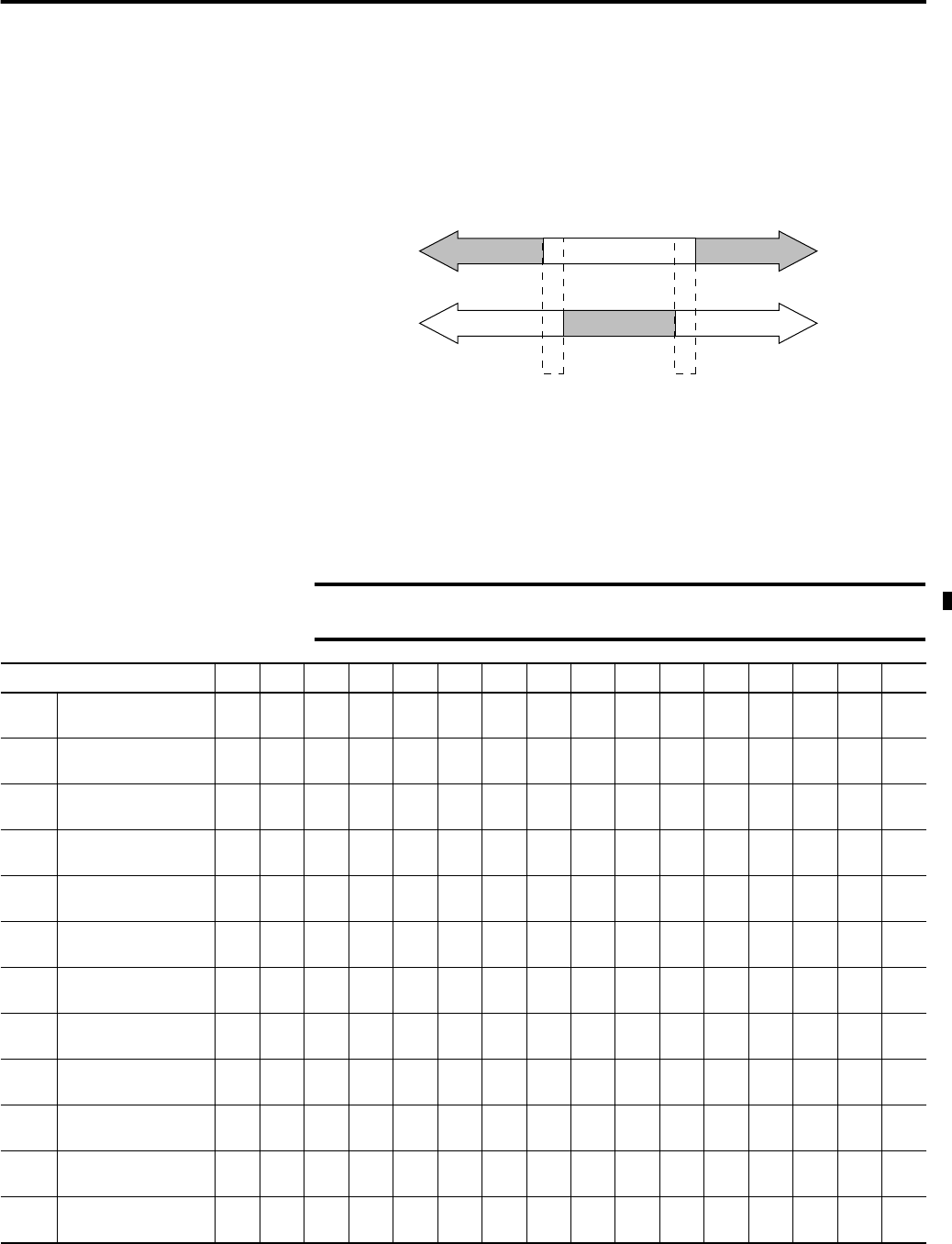

Object Value (Current Count or Current Rate)
Low Limit High Limit or
Direct Write Value
INACTIVE ACTIVE INACTIVE
ACTIVE ACTIVEINACTIVE
Invert Bit = 0
Invert Bit = 1
Configuration Array Words 15 14 13 12 11 10 09 08 07 06 05 04 03 02 01 00
50 Range 0 Output Control Out
15
Out
14
Out
13
Out
12
Out
11
Out
10
Out
9
Out
8
Out
7
Out
6
Out
5
Out
4
Out
3
Out
2
Out
1
Out
0
56 Range 1 Output Control Out
15
Out
14
Out
13
Out
12
Out
11
Out
10
Out
9
Out
8
Out
7
Out
6
Out
5
Out
4
Out
3
Out
2
Out
1
Out
0
62 Range 2 Output Control Out
15
Out
14
Out
13
Out
12
Out
11
Out
10
Out
9
Out
8
Out
7
Out
6
Out
5
Out
4
Out
3
Out
2
Out
1
Out
0
68
Range 3 Output Control Out
15
Out
14
Out
13
Out
12
Out
11
Out
10
Out
9
Out
8
Out
7
Out
6
Out
5
Out
4
Out
3
Out
2
Out
1
Out
0
74 Range 4 Output Control Out
15
Out
14
Out
13
Out
12
Out
11
Out
10
Out
9
Out
8
Out
7
Out
6
Out
5
Out
4
Out
3
Out
2
Out
1
Out
0
80 Range 5 Output Control Out
15
Out
14
Out
13
Out
12
Out
11
Out
10
Out
9
Out
8
Out
7
Out
6
Out
5
Out
4
Out
3
Out
2
Out
1
Out
0
86 Range 6 Output Control Out
15
Out
14
Out
13
Out
12
Out
11
Out
10
Out
9
Out
8
Out
7
Out
6
Out
5
Out
4
Out
3
Out
2
Out
1
Out
0
92
Range 7 Output Control Out
15
Out
14
Out
13
Out
12
Out
11
Out
10
Out
9
Out
8
Out
7
Out
6
Out
5
Out
4
Out
3
Out
2
Out
1
Out
0
98 Range 8 Output Control Out
15
Out
14
Out
13
Out
12
Out
11
Out
10
Out
9
Out
8
Out
7
Out
6
Out
5
Out
4
Out
3
Out
2
Out
1
Out
0
104 Range 9 Output Control Out
15
Out
14
Out
13
Out
12
Out
11
Out
10
Out
9
Out
8
Out
7
Out
6
Out
5
Out
4
Out
3
Out
2
Out
1
Out
0
110
Range 10 Output
Control
Out
15
Out
14
Out
13
Out
12
Out
11
Out
10
Out
9
Out
8
Out
7
Out
6
Out
5
Out
4
Out
3
Out
2
Out
1
Out
0
116 Range 11 Output
Control
Out
15
Out
14
Out
13
Out
12
Out
11
Out
10
Out
9
Out
8
Out
7
Out
6
Out
5
Out
4
Out
3
Out
2
Out
1
Out
0
