ArmorBlock 4 Output Module12
Publication 1792-5.4 – October 1996

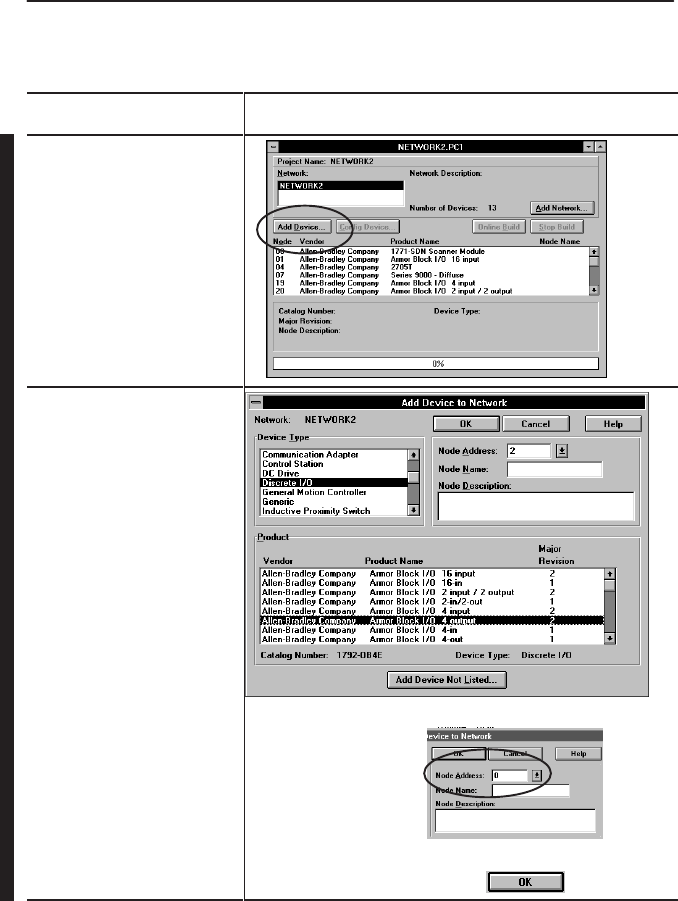

Adding a Device to the Network
Action Response
At
the network screen, click on the
“add device” button.
At the “add device to network”
screen, click on “discrete I/O” in
the device type box.
Then click on the desired ArmorBlock device.
Select the device node
address for this device.
Click on the OK button when you have selected your device.
Add more devices as necessary.
