ArmorBlock 4 Output Module
Publication 1792-5.4 – October 1996

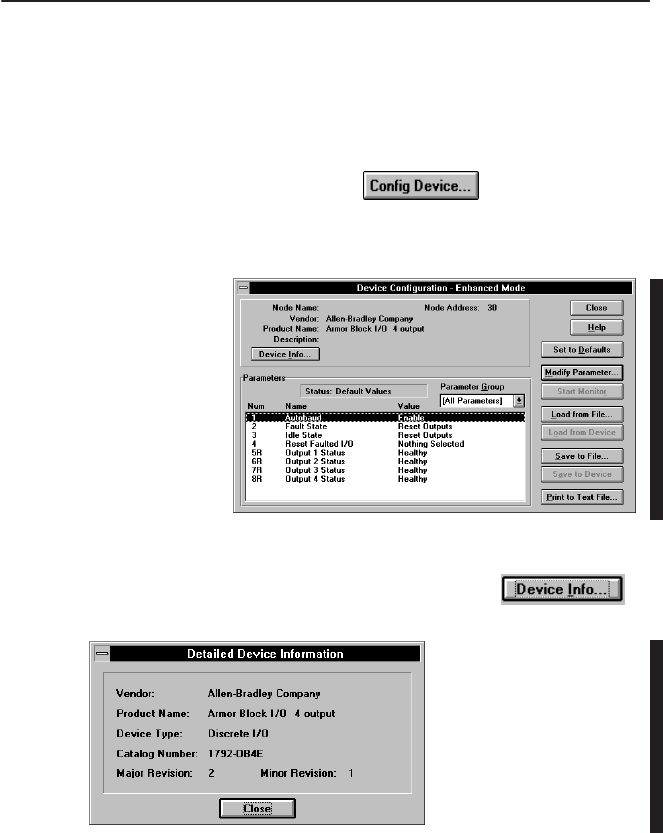

Configure your Device Parameters
After adding the devices to the network, you must configure them. You
have 2 choices:
• highlight the device, and click on the button, or
• double-click on the device to bring up the device configuration
screen.
The software displays
the parameter status.
For detailed device information on this device, click on .
