Configuring the Parameters
Default settings for the 4 output module are:
autobaud when enabled, matches device baud rate to network baud
rate at powerup
enable
fault state defines output behavior during a communication fault –
reset outputs or hold last state
reset outputs
idle state defines output behavior during program mode – reset
outputs or hold last state
reset outputs
reset faulted I/O reset faulted outputs nothing selected

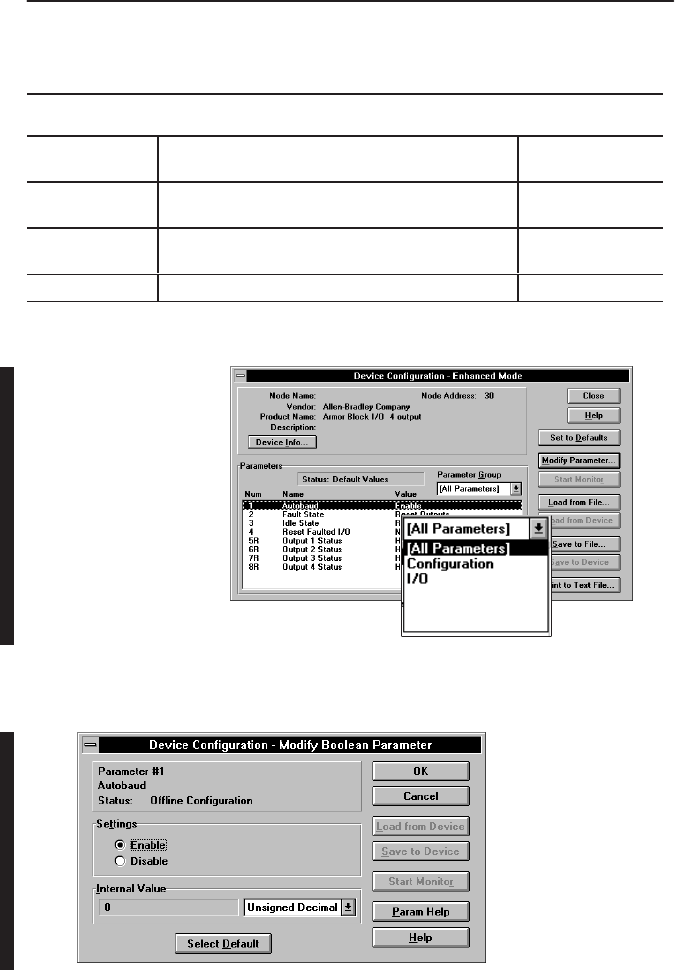

1. Double click on the parameter you want to change.
The software displays
the parameter number,
name and value.
Parameters can be
viewed all at once,
configuration only, or
I/O only.
Read only parameters
(designated by an R)
are also shown.
The parameter screen appears.
