ArmorBlock 4 Output Module
Publication 1792-5.4 – October 1996

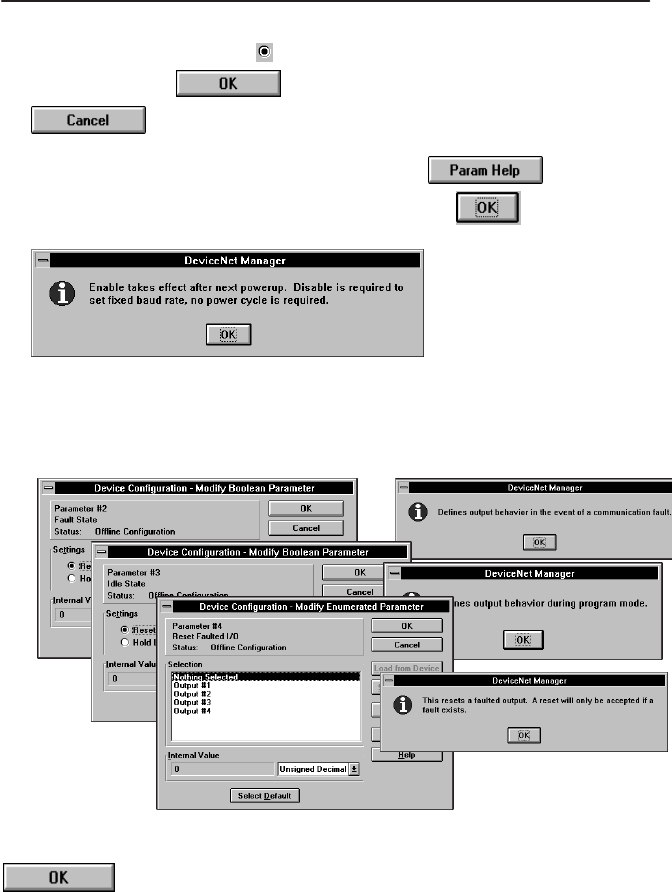

2. Click on the radio button to select a different setting. To save the
setting, click on
. To cancel any changes, click on
.
3. For help about a specific parameter, click on
. A screen
similar to this will appear. To continue, click on
4. Continue with any additional parameters you want set for your
block module.
The 4 output module has the following additional
parameters: off to on delay, on to off delay, and reset faulted I/O.
When you have completed each parameter selection, click on the
button. This returns you to the device configuration
screen.
You can save these parameters to a file for downloading to the device
when online, or print them to a text file for hard copy use.
