ArmorBlock 4 Output Module
Publication 1792-5.4 – October 1996

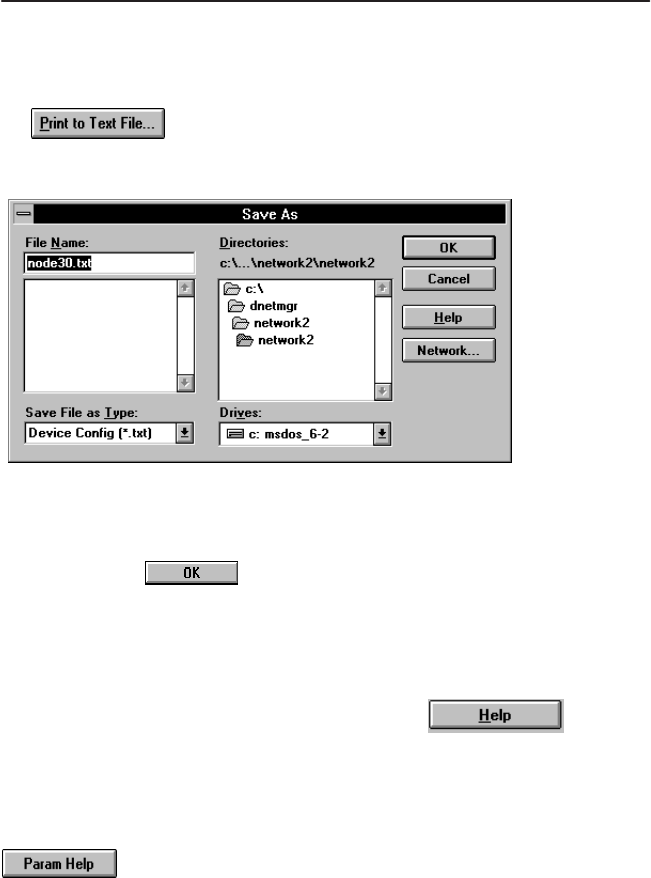

Printing to a Text File
1. If you choose to save your changes to a text file, click on the
button.
A screen similar to the following will appear.
2. Choose the file name, file type (.TXT), directory and drive to which
you want to save the file.
3. Click on the button to save. Use this file to print out as
hard copy for future reference.
Online Help
Online help is available on all screens. Click on to
bring up pertinent information concerning the device configuration you
are selecting.
Additionally, help is available on each parameter screen by clicking on
.
