ArmorBlock 4 Output Module18
Publication 1792-5.4 – October 1996
Configure
Y
our Armor Module Online Using the
DeviceNet Manager Configuration Tool
The procedure for online configuration is similar to the offline
configuration procedure previously described. You must:
• establish the interface to the network
• add the device to the network from the Add Device to Network
screen
• access and configure the device parameters
Establish the Interface

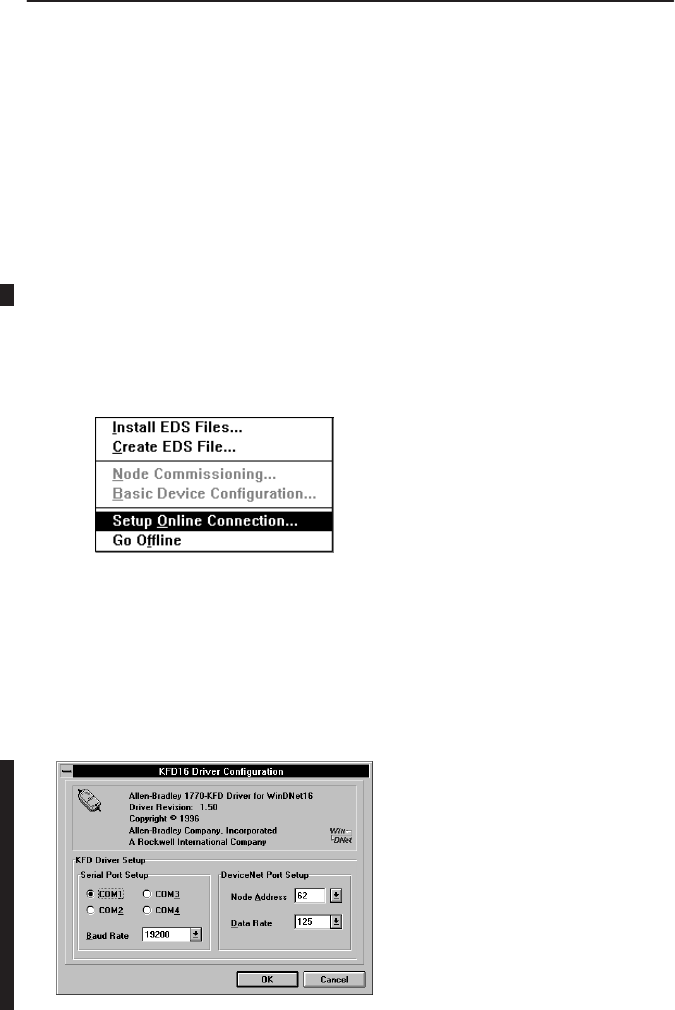

1. Select the “set up online connection” at the Utilities pulldown menu.
2. The configuration screen for your selected driver appears. You can:
• set the node address
• set the data rate
• select the interface adapter serial port
• set the interface adapter baud rate
