ArmorBlock 4 Output Module
Publication 1792-5.4 – October 1996
Install Y our ArmorBlock Module
Installation of the ArmorBlock module consists of:
• setting the node address in the ArmorBlock module
• mounting the ArmorBlock module
• connecting the wiring
• communicating with your module
• configuring the parameters
Set the Node Address
Each ArmorBlock comes with its internal program set for node address
63. To set the node address, you need the following:
• host computer with DeviceNet Manager Software (or similar
configuration software tool)
• 1770-KFD RS-232 module (or similar interface)
• suitable cables to connect the 1770-KFD to your module and to
connect the 1770-KFD to your host computer
Set the node address to meet your system requirements as follows:

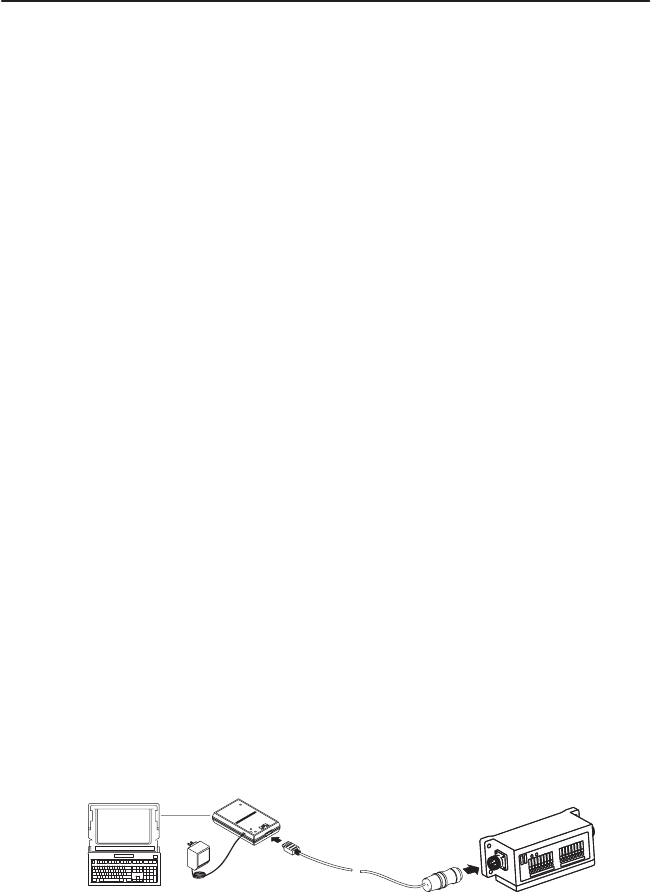

1. Set up a system (as shown below) to communicate with your
ArmorBlock module.
Power from 9V DC Power-Supply Adapter
power supply
open style connector to
sealed mini-female cable
RS-232 module
host computer with the
DeviceNet Manager software
1770-KFD
