ArmorBlock 4 Output Module8
Publication 1792-5.4 – October 1996
Connect the Wiring to the ArmorBlock Module
The block module uses quick disconnect, screw-on style connectors
for:
• I/O output wiring
• power wiring for I/O outputs
• the DeviceNet connector

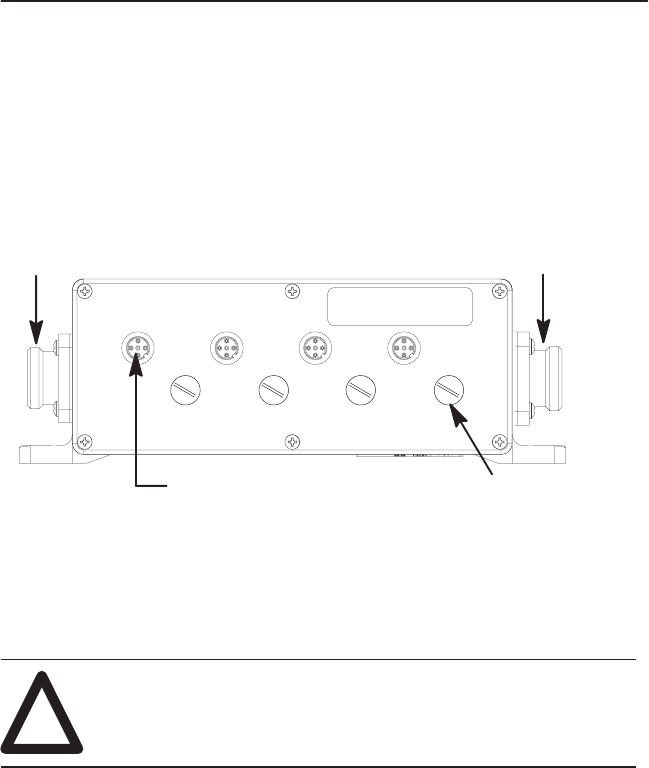

4 micro connectors for output signal wiring
O
utput power mini connector
DeviceNet mini connector
4 micro plugs – these
seal unused ports
4 micro plugs
0123
4 micro plugs – these
seal unused ports
Micro plugs are included with your module. Use these plugs to cover
and seal unused ports.
Pinout diagrams for these connectors are shown below.
!
ATTENTION: All connectors must be securely
tightened to properly seal the connections against leaks
and maintain NEMA 4X and 6P requirements.
