ArmorBlock MaXum 4 Input / 4 Output Module with 8 Connectors, Series B

1 Publication 1792D-IN050A-EN-P - February 2001

Installation Instructions

ArmorBlock MaXum 4 Input / 4 Output

Module with 8 Connectors, Series B

(Cat. No. 1792D-4BV4D)

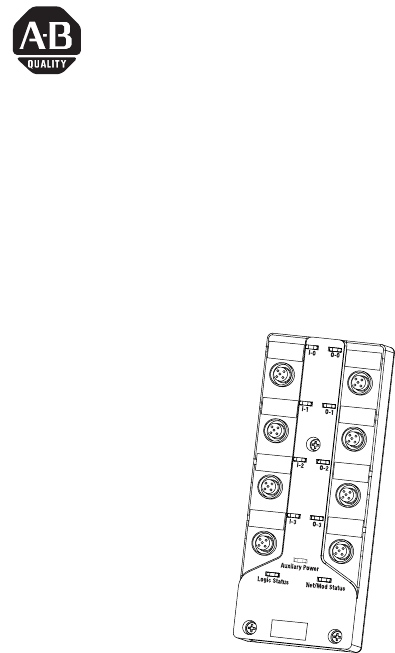

This ArmorBlock MaXum I/O module (Cat. No. 1792D-4BV4D) is a

stand-alone 24V dc I/O product which communicates via a

DeviceNet network. The sealed housing of this module requires no

enclosure.

This model has 4 inputs and 4 outputs with 8 connectors. Inputs are

24V dc automatically configured for PNP (sourcing) or NPN (sinking)

devices. Four self-protected 24V dc outputs can provide up to 0.5

amp each. Diagnostic features are short circuit, open wire, and no

load detection reported to the point level. Local logic control has

been added to this Series B product. The 1792D-4BVT4D also has 4

inputs and 4 outputs, but only 4 connectors. This new module gives

you complete single point diagnostics.

42758

Summary of content (16 pages)

PAGE 1
Installation Instructions ArmorBlock MaXum 4 Input / 4 Output Module with 8 Connectors, Series B (Cat. No. 1792D-4BV4D) 42758 This ArmorBlock MaXum I/O module (Cat. No. 1792D-4BV4D) is a stand-alone 24V dc I/O product which communicates via a DeviceNet network. The sealed housing of this module requires no enclosure. This model has 4 inputs and 4 outputs with 8 connectors. Inputs are 24V dc automatically configured for PNP (sourcing) or NPN (sinking) devices.
PAGE 2
ArmorBlock MaXum 4 Input / 4 Output Module with 8 Connectors, Series B Package Contents Your package contains: • 1 ArmorBlock MaXum Module • Installation Instructions (Note: Cable bases are ordered and shipped separately.) European Union Directive Compliance If this product has the CE mark it is approved for installation within the European Union and EEA regions. It has been designed and tested to meet the following directives.
PAGE 3
ArmorBlock MaXum 4 Input / 4 Output Module with 8 Connectors, Series B 3 Install Your ArmorBlock MaXum I/O Module To install module: • • • • Set the node address Mount the module to the cable base Connect the cord sets Communicate with the module Set the Node Address Valid node addresses are 00 to 63. Set the node address using the rotary switches, RSNetWorx for DeviceNet, DeviceNetManager, or other software configuration tool.
PAGE 4
ArmorBlock MaXum 4 Input / 4 Output Module with 8 Connectors, Series B The module is equipped with AutoBaud detect. AutoBaud lets the module read the settings already in use on your DeviceNet network and automatically adjusts to follow those settings.
PAGE 5
ArmorBlock MaXum 4 Input / 4 Output Module with 8 Connectors, Series B 5 Note: Dimensions change according to the cable base and module combination used. 2.7 (68.6) 6.85 (174mm) Assembled dimensions in (mm) Align the screws to properly assemble the module to the base. 1.9 (48.26) Cable Base 1792D-CBFM is used for this example. 42759 Connect the Input / Output Cord Sets to the MaXum Module This module uses 5 pin micro (12mm) style PCB mounted connectors.
PAGE 6
ArmorBlock MaXum 4 Input / 4 Output Module with 8 Connectors, Series B Please refer to publication 889-CP001A-EN-P and 889-TD001A-EN-P for Rockwell Automation cables and cord sets offerings. IMPORTANT If the devices (sensors) connected to the input connections require Class 2 power to operate, the DeviceNet connections of this equipment must be powered by a Class 2 source.
PAGE 7
ArmorBlock MaXum 4 Input / 4 Output Module with 8 Connectors, Series B 7 Output Power and DeviceNet Cables Output power and DeviceNet cables are described in the installation publications for the cable base assembly of your choice. Refer to the following publications: • 1792D-IN009B-EN-P ArmorBlock MaXum Cable Base Installation Guide • DN-6.7.
PAGE 8
ArmorBlock MaXum 4 Input / 4 Output Module with 8 Connectors, Series B Refer to the table below for the word/bit definitions.
PAGE 9
ArmorBlock MaXum 4 Input / 4 Output Module with 8 Connectors, Series B Troubleshoot with the Indicators This module has the following indicators: • • • • Network and Module status indicator Logic status indicator Auxiliary Power indicator Individual I/O status indicators for inputs 0 through 3 and outputs 0 through 3.
PAGE 10
ArmorBlock MaXum 4 Input / 4 Output Module with 8 Connectors, Series B Net/Mod Status Indicator (continued) Solid Red Unrecoverable fault Communication failure - duplicate node address present or incorrect baud rate Green to Red to Off At powerup only - LED test The following table describes logic status indicators.
PAGE 11
ArmorBlock MaXum 4 Input / 4 Output Module with 8 Connectors, Series B 11 Hazardous Location Approval The following information applies only to products marked with Hazardous Location Approval, when operating in hazardous locations: Products marked “CL I, DIV 2, GP A, B, C, D” are suitable for use in Class I Division 2 Groups A, B, C, D, Hazardous Locations and nonhazardous locations only. Each product is supplied with markings on the rating nameplate indicating the hazardous location temperature code.
PAGE 12
ArmorBlock MaXum 4 Input / 4 Output Module with 8 Connectors, Series B WARNING ÿ When used in a Class I, Division 2, hazardous location, this equipment must be mounted in a suitable enclosure with proper wiring method that complies with the governing electrical codes.
PAGE 13
ArmorBlock MaXum 4 Input / 4 Output Module with 8 Connectors, Series B 13 AVERTISSEMENT ÿ AVERTISSEMENT ÿ Utiliser des fils d’alimentation qui conviennent à une température de 30°C au-dessus de la température ambiante. Pour une utilisation en environnement de classe i, division 2 dangereux, cet equipement doit etre monte dans un boitier avec un cablage approprie conforme aux normes electriques en vigueur. This product has been tested at an Open DeviceNet Vendor Association, Inc.
PAGE 14
ArmorBlock MaXum 4 Input / 4 Output Module with 8 Connectors, Series B Specifications 4 Input / 4 Output Module - Cat. No. 1792D-4BV4D Input Specifications Max. Inputs per block 4 - 3 wire or dry contact PNP or NPN devices or 4 4 wire PNP or NPN devices Sensor Source Current (per connector) 100mA total - Off-Wire Sense Current 0.5mA - On-state Voltage 25V dc 10V dc On-state Current 10mA 2mA Off-state Voltage 5V dc - Off-state Current - 1.5mA Output Specifications Max.
PAGE 15
ArmorBlock MaXum 4 Input / 4 Output Module with 8 Connectors, Series B 4 Input / 4 Output Module - Cat. No. 1792D-4BV4D General Specifications Auxiliary Power Voltage Current Dimensions (assembled to base) inches - (Millimeters) Environmental Conditions Operational Temperature Storage Temperature Relative Humidity Shock Operating Non-operating Vibration Conductors 30V dc max 4A max 10V dc min 4A max 1.9H x 2.7W x 6.85D (48.26)H x (68.
PAGE 16
Allen-Bradley is a registered trademark of Rockwell Automation. ArmorBlock, ArmorBlock MaXum, DeviceNetManager, and KwikLink are trademarks of Rockwell Automation. DeviceNet is a trademark of Open DeviceNet Vendor Association. RSNetWorx for DeviceNet is a trademark of Rockwell Software, Inc. Publication 1792D-IN050A-EN-P - February 2001 PN 957485-02 © 2001 Rockwell International Corporation.
