Quick Start - FRN 1-4.xx

PowerFlex 400 Adjustable Frequency AC Drive Quick Start English-27

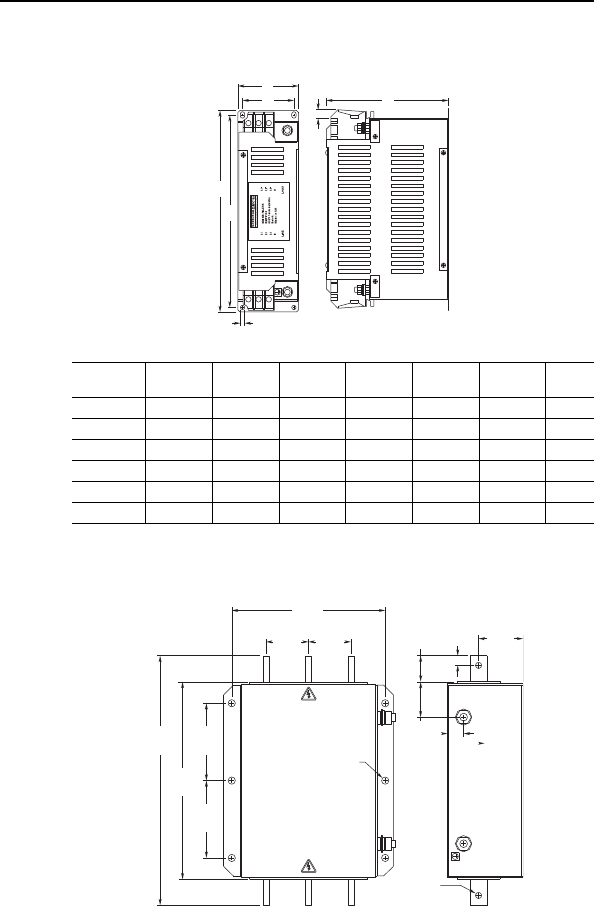

Figure 7: Catalog Numbers: 22-RFD036, 22-RFD050, 22-RFD070, 22-RFD100,
22-RFD150, 22-RFD180
Dimensions are in millimeters and (inches).
Figure 8: Catalog Numbers: 22-RFD330
Catalog
NumberABCDEFG
22-RFD036 74 (2.91) 272 (10.71) 161 (6.34) 60 (2.36) 258 (10.16) 7.5 (0.30) 7 (0.28)
22-RFD050 93 (3.66) 312 (12.28) 190 (7.48) 79 (3.11) 298 (11.73) 13.5 (0.53) 7 (0.28)
22-RFD070 93 (3.66) 312 (12.28) 190 (7.48) 79 (3.11) 298 (11.73) 13.5 (0.53) 7 (0.28)
22-RFD100 93 (3.66) 312 (12.28) 190 (7.48) 79 (3.11) 298 (11.73) 13.5 (0.53) 7 (0.28)
22-RFD150 126 (4.96) 312 (12.28) 224 (8.82) 112 (4.41) 298 (11.73) 19.5 (0.77) 7 (0.28)
22-RFD180 126 (4.96) 312 (12.28) 224 (8.82) 112 (4.41) 298 (11.73) 27 (1.06) 7 (0.28)
B
E
A
D
C
F
G
235
(9.25)
120
(4.72)
65
(2.56)
65
(2.56)
∅ 12
(2.56)
∅ 10.5
(2.56)
68
(2.68)
40
(1.57)
15
(0.59)
306
(12.05)
55
(2.17)
386
(15.20)
25
(0.98)
120
(4.72)
