Publication 2706-UM017C-EN-P - March 2006
Application Guide 4-51

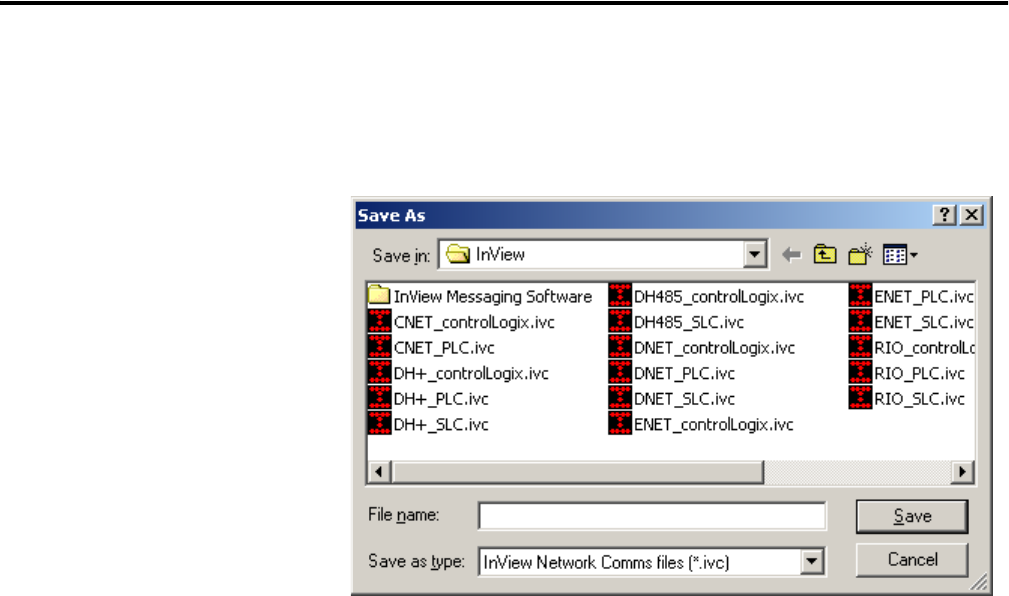

1. Click the Save button to save your configuration as an InView
Network Communications file (.ivc) for later loading or copying
to another machine.
2. Click the Download button to download the configuration to the
InView display that is connected to your computer using serial
or network communications.
3. Select a Transfer Type and then OK to proceed with the
download.
