5-4 InView Communication Module Troubleshooting
Indicators
On InView communication modules, use the COMM and Fault LED
indicators to isolate operating problems. The illustration below shows
the location of these indicators.

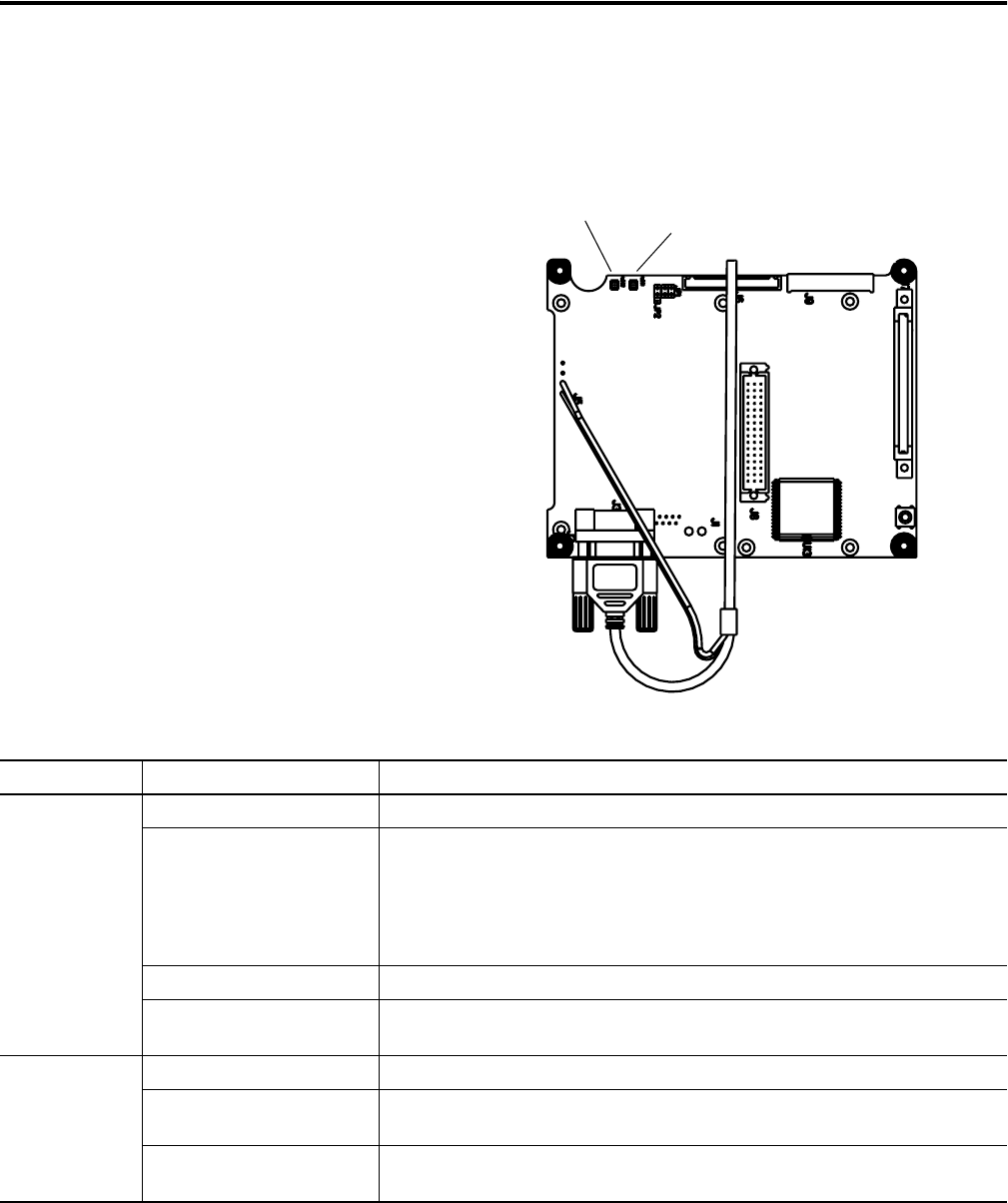

Communication Module Indicators
Fault LED
(LED 1)
COMM LED
(LED 2)
DF1, DH-485, DH+ LED Indications
LED This Pattern: Indicates:
Comm
(1)
Solid Fill Normal operating state (no communication faults).
No Fill Fault detected.
• Make sure controller is run mode
• Verify communication rate settings of terminal and controller
• Verify proper InView communication module board to controller connections
Flashing When power is first applied (momentarily).
Blinking No communications established. For DF1 terminals, the Comm indicator flashes until
an application is loaded.
Fault No Fill Normal operating state
Solid Fault detected. Cycle power to the InView communication module board. If the fault
still exists, the terminal requires servicing.
Blinking Hardware is functioning but no application is loaded or the current application is
corrupt. Reload the application into the InView communication module board.
(1)
Comm LED stays on until powerup self-tests are complete.
