1-6 Introduction to InView Connectivity

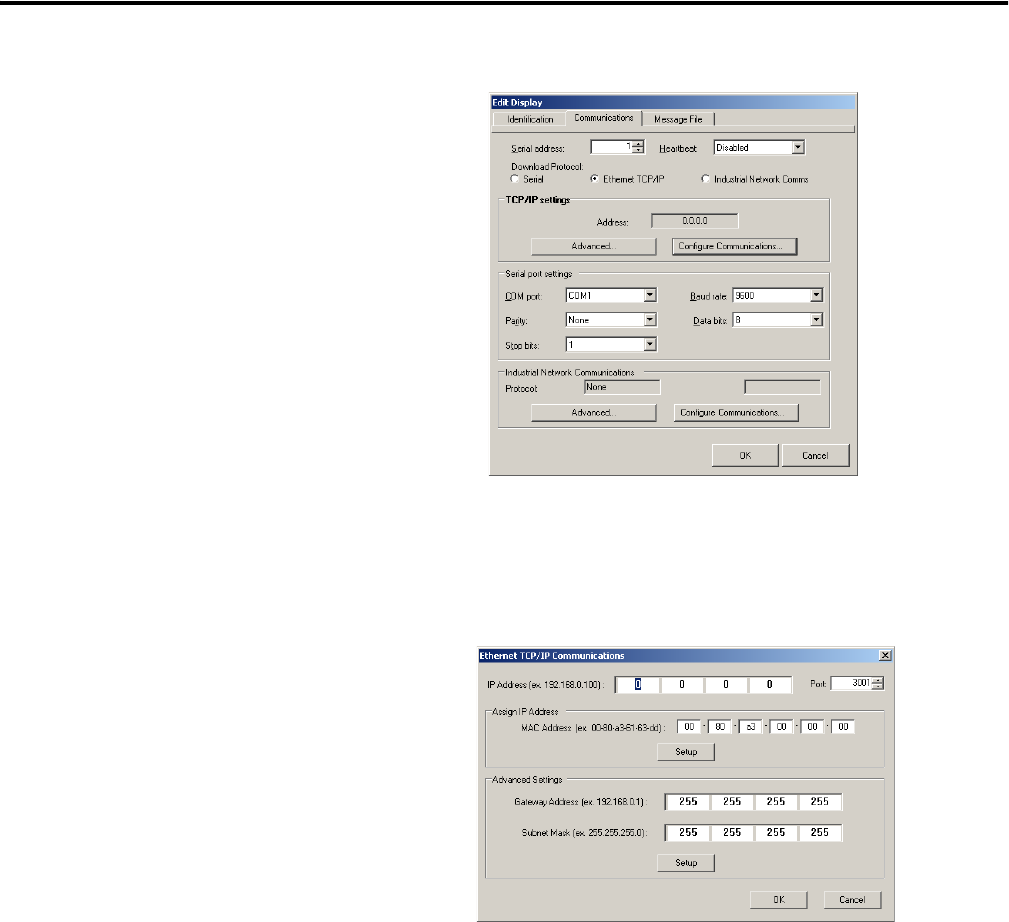

4. Navigate to the Communications tab.
5. Assure Ethernet TCP/IP is selected under the Download
Protocol.
6. Click the Configure Communications button to set the IP
Address.
The Ethernet TCP/IP Communications Configuration dialog
opens.
7. Enter IP Address desired, the MAC Address and click Setup.
• MAC ID is case sensitive
• The PC being used to set the IP should be on the same subnet
and should be in the same range of IP addresses as the
2706-PENET1.
