Publication 2706-UM017C-EN-P - March 2006

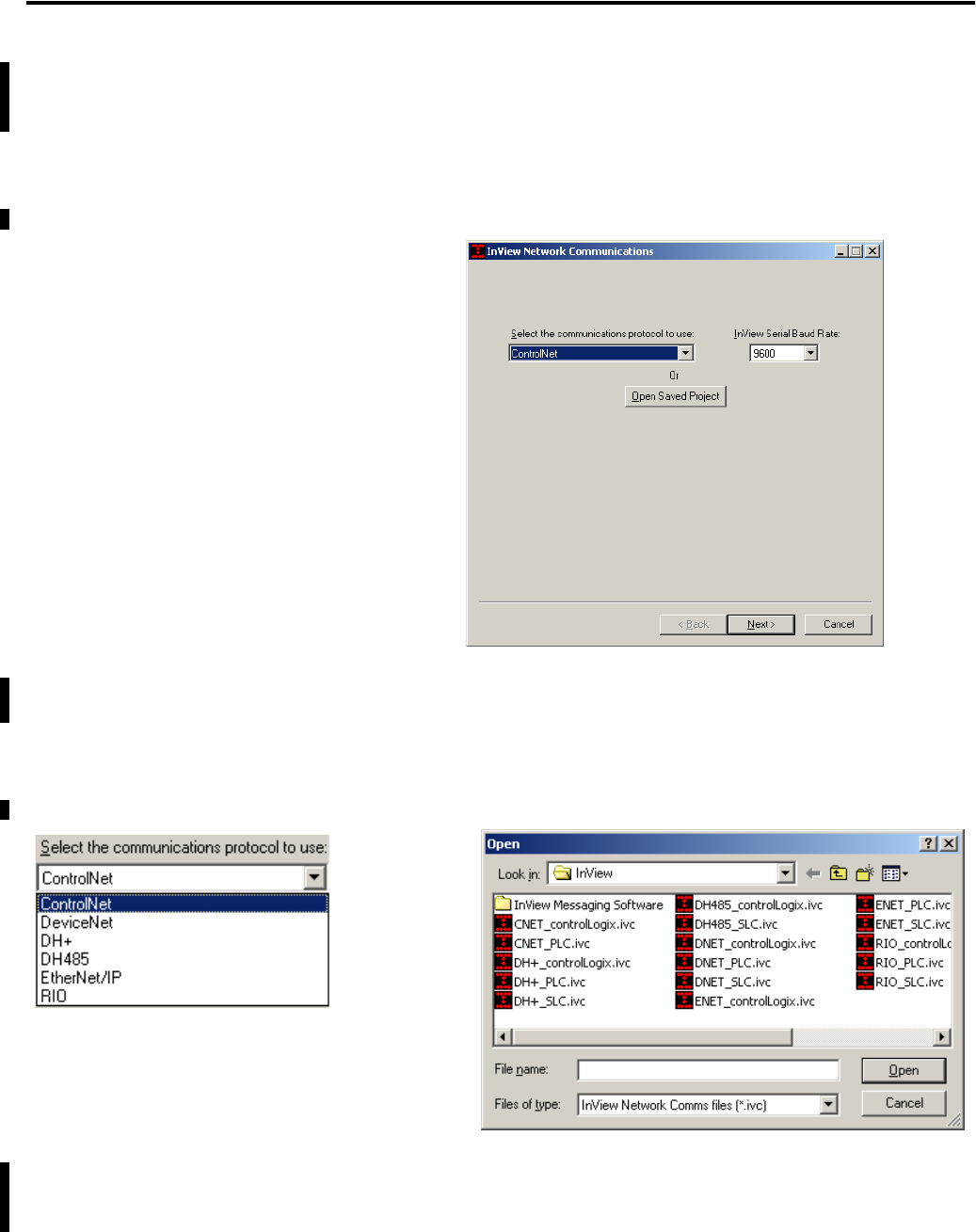

1-8 Introduction to InView Connectivity
6. Click the configure communications button in the Industrial
Networks Communications section on the bottom of the
communications tab.
The following dialog appears.
7. Select a communication protocol or click the Open Saved
Project button to open a previously saved .ivc configuration file.
Either dialog appears.
A saved InView Network Communications file (*.ivc) can still be
edited within the utility and either downloaded to the
communication module or saved.
or
