Install InView Communication Modules 2-3
8. Tighten the cable grip cap until the cable is securely fastened.
9. Replace the power supply back cover with the 6 screws (on
2706-P4x).
10. Torque the screws to 2.7Nm (24 in-lbs).
11. Connect the power supply to a power source.
Mount Communication Kit
to 2706-P72, 2706-P74,
2706-P92 and 2706-P94
Displays
The 2706-P72, 2706-P74, 2706-P92 and 2706-P94 displays are
equipped with a mounting plate inside the case for mounting the
Communication Kit.
To mount the communication module to the InView display:
1. Disconnect power to the InView display.
TIP
Be sure to place the wires so they are not caught by
screws when replacing the power supply cover, and
also so they do not interfere with fan operation.

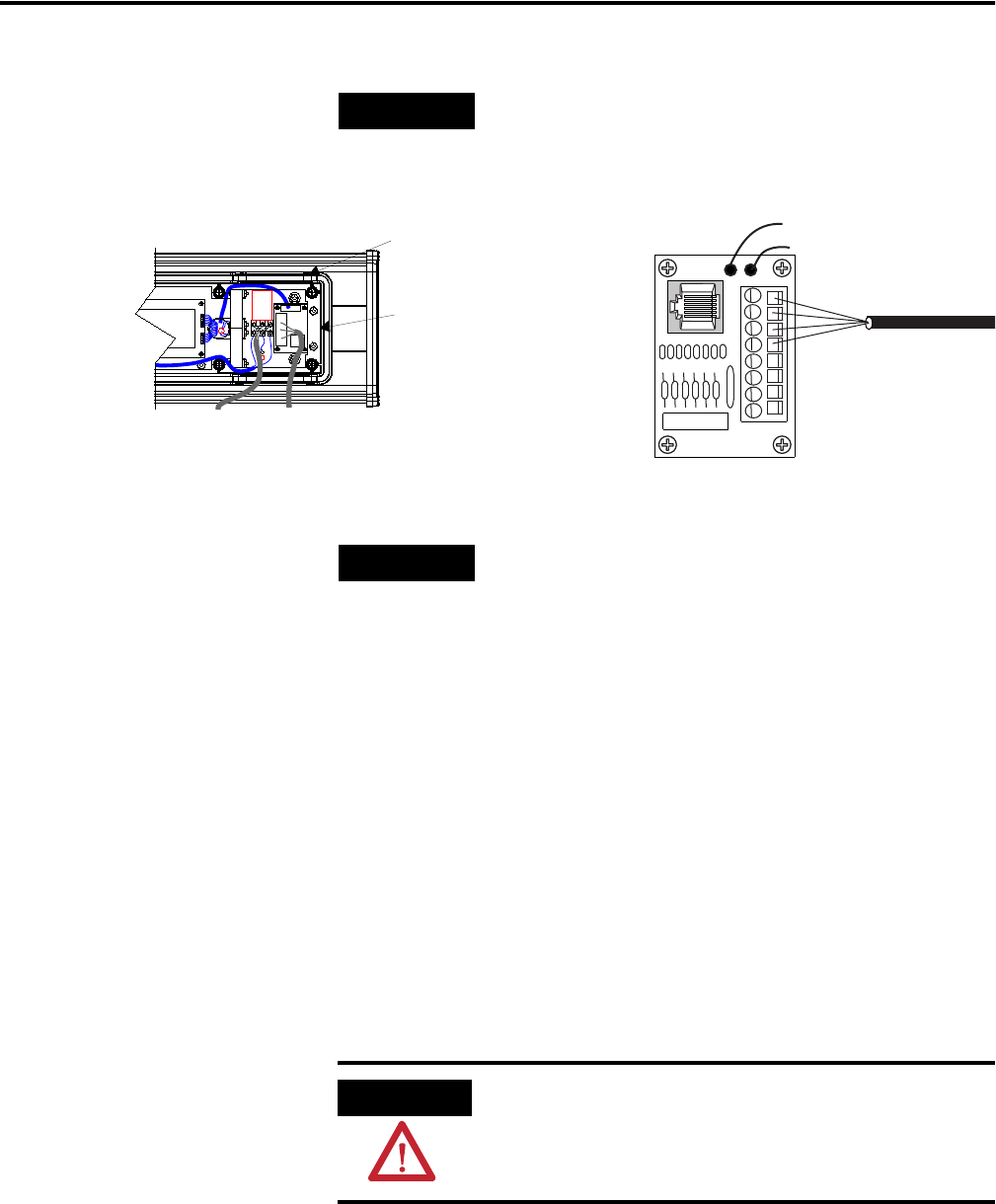

Black (GND)1
Red (PWR, +5V)2
Orange (TX)3
Brown (RX)4
5
6
7
8
Incoming
serial wires
TB1
TB1
TIP
The 2706-P_M communication modules are powered
through the serial cable by the display (Series C).
ATTENTION
Hazardous Voltage. Contact with high voltage may
cause death or serious injury. Always disconnect
power to the InView display prior to servicing.
