InView Communication Module Connections 3-7
Make Remote I/O Connections
To connect an InView communication module to a remote I/O
scanner, use cable Catalog No. 1770-CD (equivalent to Belden 9463).
The maximum cable length (link distance) is determined by the
communication rate.
• 2,800 m (10,000 ft) for 57.6 Kbps
• 1,400 m (5,000 ft) for 115.2 Kbps
• 700 m (2,500 ft) for 230.4 Kbps
See Programmable Controller Wiring and Grounding Guidelines,
publication 1770-4.1. The user manual for the I/O scanner module
also provides cabling information.

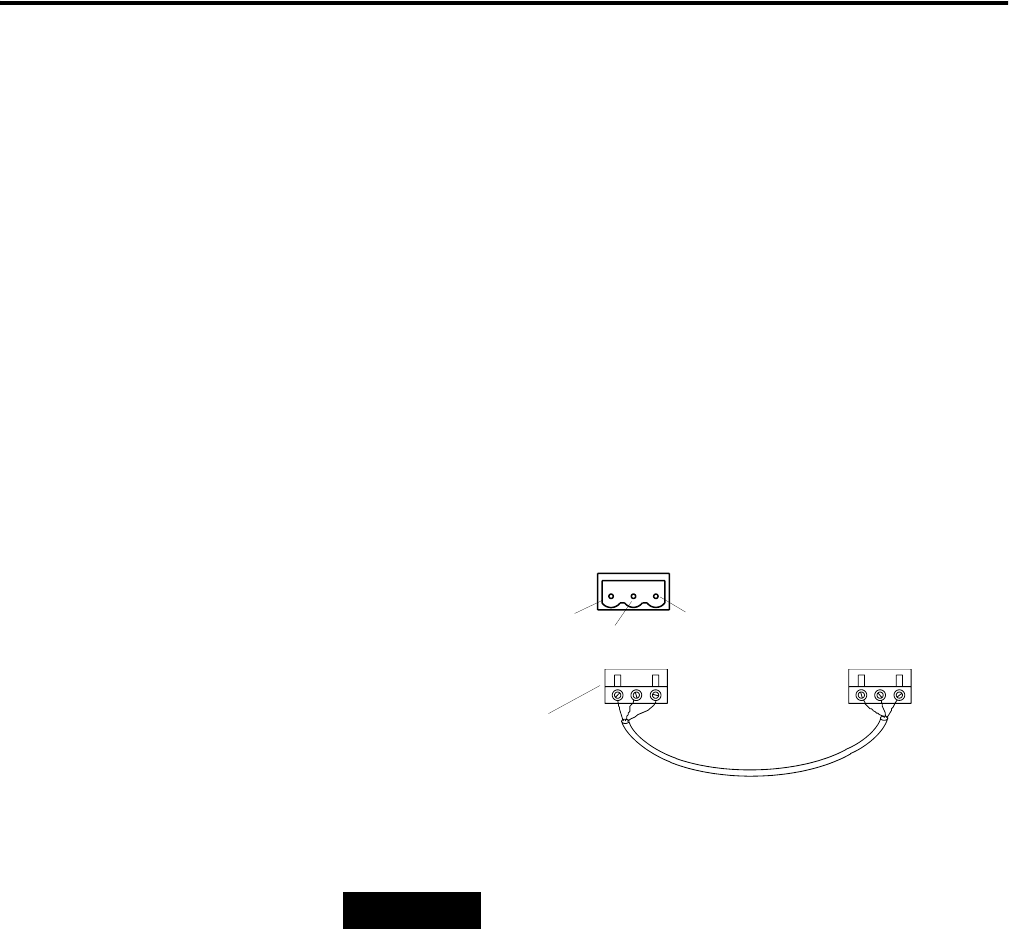

Remote I/O Connections
TIP
The polarity of the remote I/O connector on the
InView communication module is reversed from the
PLC scanner connector. However, the polarity is the
same as the scanner card connection to the SLC.
Remote I/O Port 3-pin Terminal Block
Connector
Clear = 2
Blue = 1
Shield
Cable (Catalog No. 1770-CD)
Connector (One provided with
InView Communication
Module)
To PLC or Scanner Remote
I/O Port
