InView Communication Module Connections 3-9
Typical DH+ System Configuration
For more information on the Allen-Bradley DH+ link, refer to:
• Enhanced PLC-5 Programmable Controllers Installation
Instructions, publication 1785-5.7.
• Data Highway/Data Highway Plus/Data Highway II/Data
Highway 485 Cable Installation Manual, publication 1770-6.2.2.

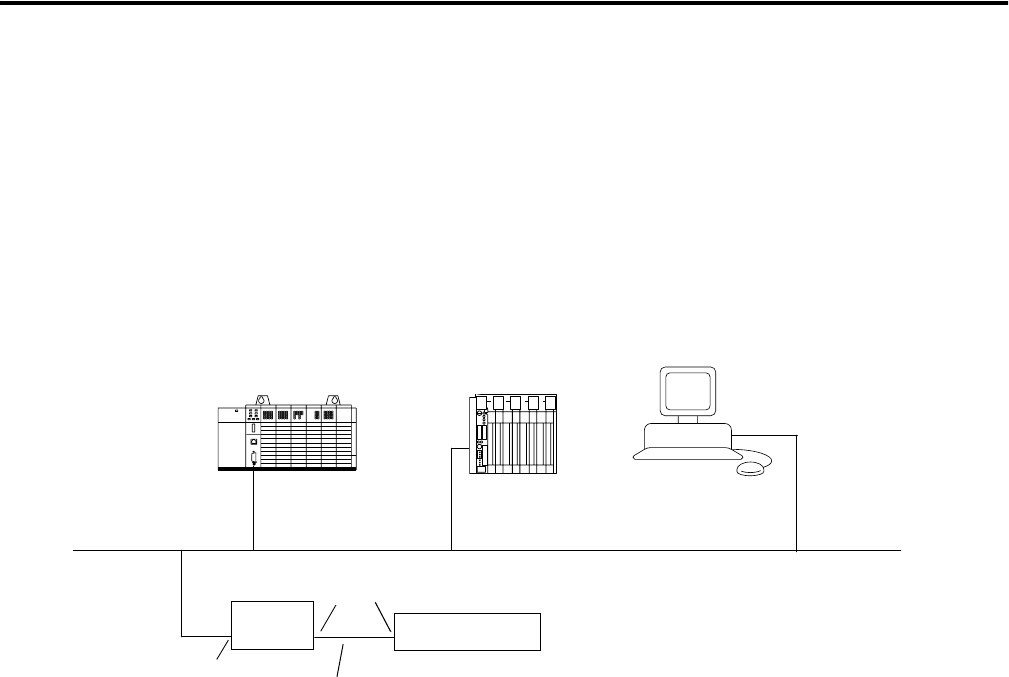

DH+ System Configuration
DH+ RSLinx Port DH+
communication card
installed in computer
Download applications to InView
DH+ Communication Module
1) over local DH+ link
2) over a direct serial link
SLC 5/04 Processor
PLC-5 Controller
InView Messaging
DH+ Port
InView display
DH+ Comm
Module
RS-232 Port
77156-094
2706-P22R
2706-P4x
2706-P7x
2706-P9x
