3-12 InView Communication Module Connections
Connect to a Single SLC Controller (Point-to-Point)
To connect a DH-485 InView communication module to a single SLC
controller use one of these cables.
• 0.3 m (1 ft) catalog no. 1747-C11
• 1.83 m (6 ft) catalog no. 1747-C10
• 6.1 m (20 ft) catalog no. 1747-C20

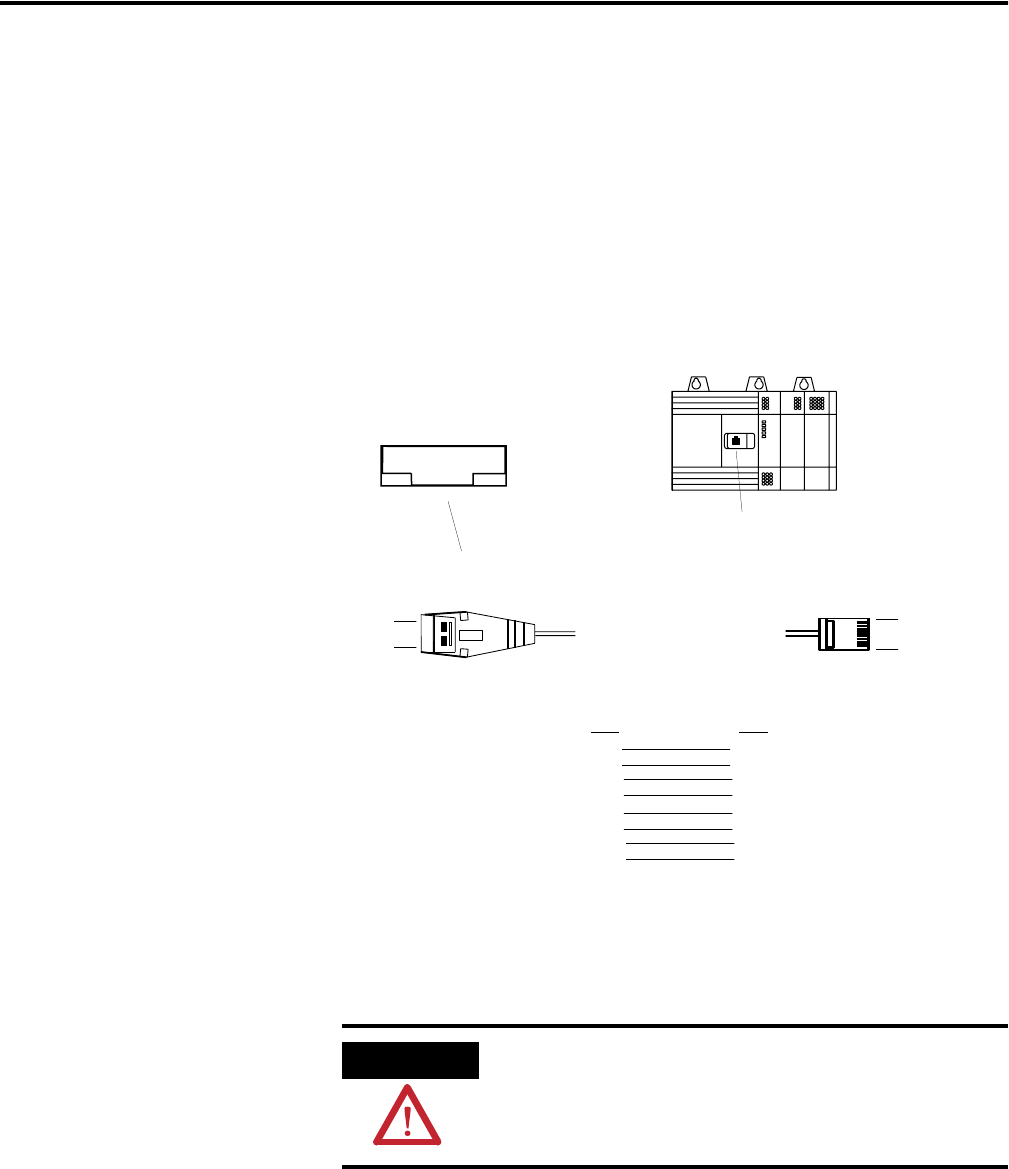

InView to SLC Controller Connections
The DH-485 connectors are not electrically isolated. If electrical
isolation is required, use link couplers (Catalog No. 1747-AIC).
ATTENTION
Electrical isolation using link couplers (Catalog No.
1747-AIC) is required where the distance between
the InView communication module and the SLC is
greater than 6.1 m (20 ft).
InView DH-485 Communications Port
SLC 500 Communications Connector
Cable, Catalog No. 1747-C10
Cable, Catalog No. 1747-C11
Cable, Catalog No. 1747-C20
To InView Communication
Module Terminal 8-pin
Female Plug
Connection Diagram
1
2
3
4
5
6
7
8
1
2
3
4
5
6
7
8
Connect to:
Pin #
Pin #
To SLC Communications Connector
8-pin, Male, Modular Plug
Side shown is opposite latch
Pin 1
Pin 8
Pin 1
Pin 8
SLC Controller
