Publication 2706-UM017C-EN-P - March 2006
InView Communication Module Connections 3-13

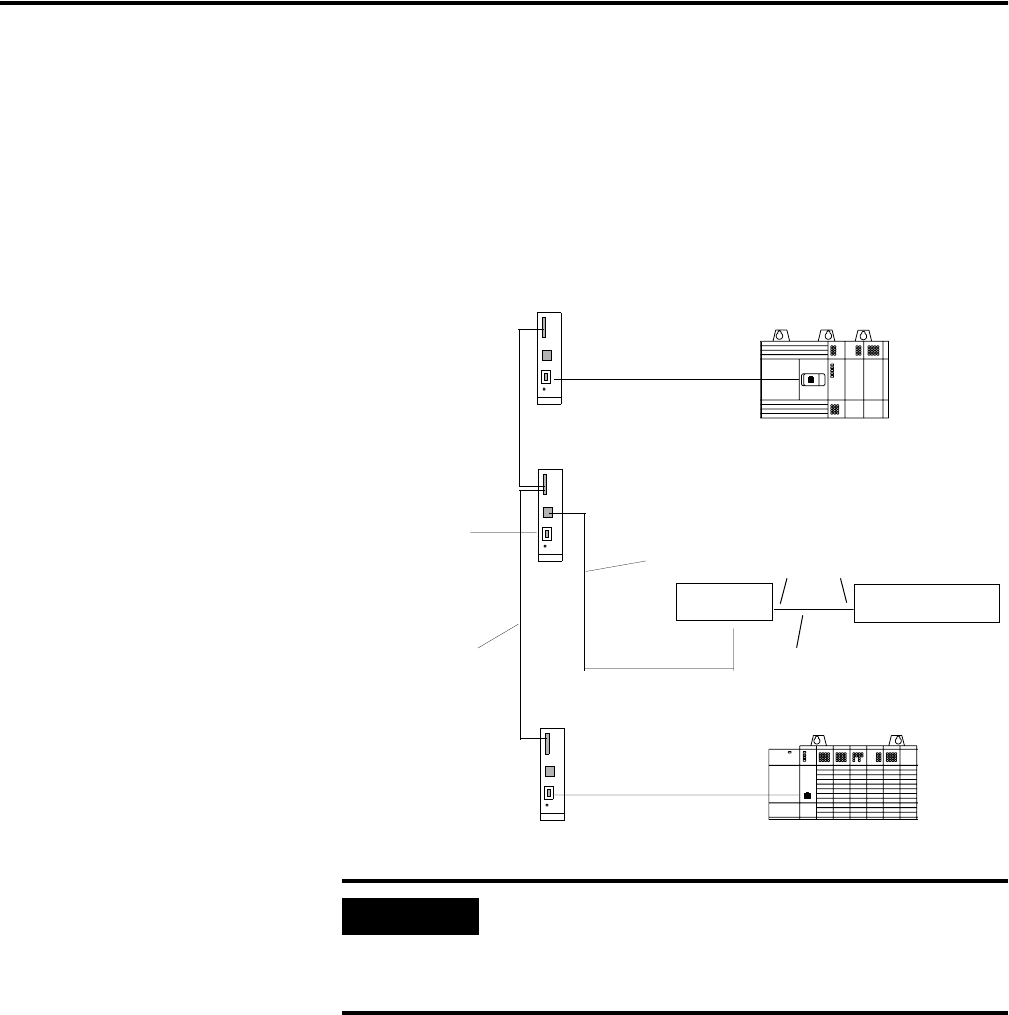

Connect to a DH-485 Network
This section shows how to connect an InView DH-485 communication
module to multiple SLC controllers on a DH-485 network through the
AIC link coupler.
DH-485 Connections
IMPORTANT
The DH-485 network cable requires proper
shielding, grounding and termination. Refer to Data
Highway / Data Highway Plus / Data Highway-485
Cable Installation Manual, publication 1770-6.2.2.
Belden 9842
Power Source
or 1747-NP1
SLC Processor
SLC 5/01 Controller
Cable Catalog No.
1747-C10 Catalog No.
1747-C11 Catalog No.
1747-C20
Link Coupler Catalog No.
1747-AIC
InView Display
DH-485 Comm
Module
RS-232 Port
77156-094
2706-P22R
2706-P4x
2706-P7x
2706-P9x
