Publication 2706-UM017C-EN-P - March 2006
3-18 InView Communication Module Connections
Compatible ControlNet Controllers
The ControlNet InView communication module communicates with a
PLC-5C (using PCCC commands) or a ControlLogix processor (using
CIP protocol) using unscheduled messaging. The following controllers
are supported.
• ControlLogix using 1756-CNB module
• PLC-5/20C, -5/40C, -5/60C, -5/80C processors
ControlNet Ports
ControlNet versions of the InView communication module have a
ControlNet communication port and an RS-232 serial port.
• Use the ControlNet port to connect to devices on a ControlNet
network and transfer applications over a ControlNet network
• Use the RS-232 port to transfer applications between a computer
and the InView communication module using a direct
connection
• Use the RS-232 port to connect an InView display to trigger
messages
For details on connecting to the RS-232 port, see Connect a Computer
in this chapter.

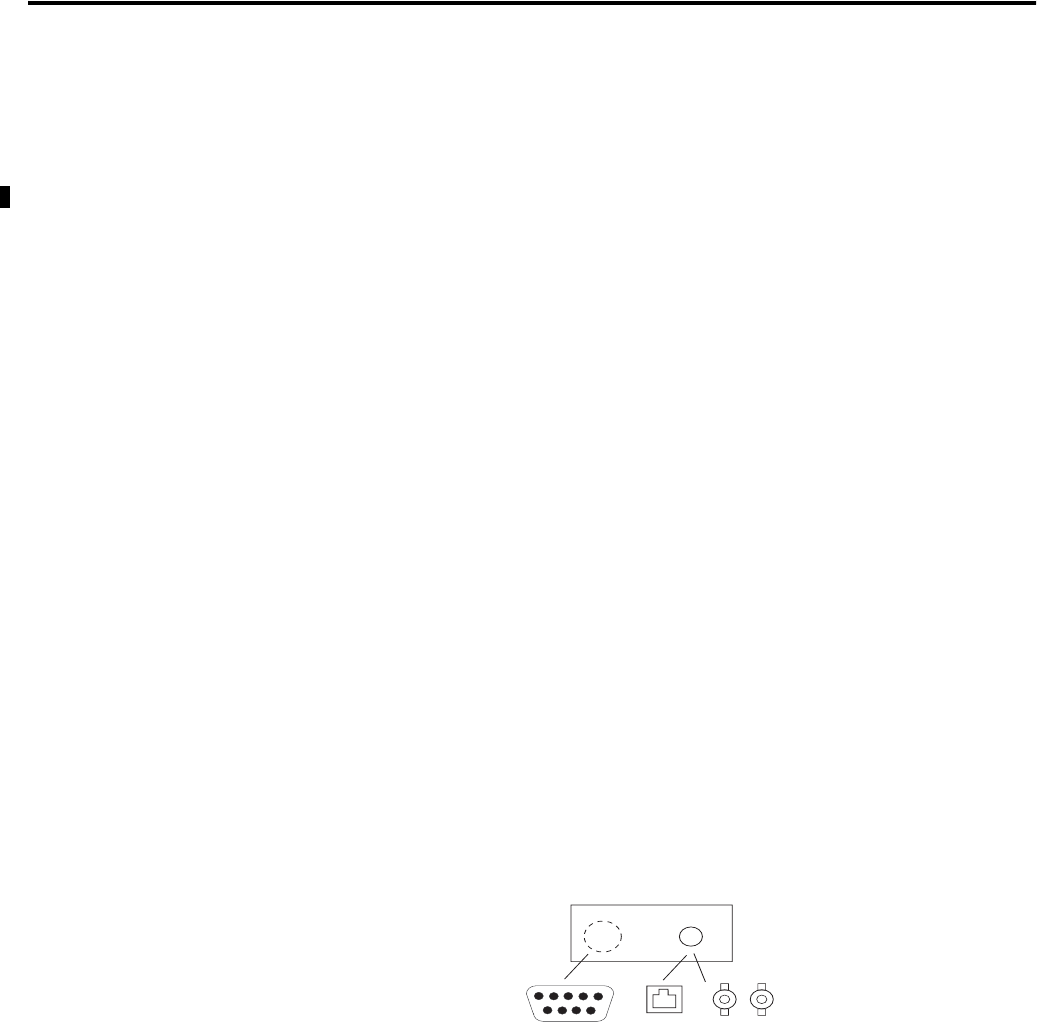

InView Communication Module ControlNet Ports
InView ControlNet Communication Module
12345
67 8 9
RS-232 Port
NAP
ControlNet Port
