Publication 2706-UM017C-EN-P - March 2006
InView Communication Module Connections 3-19
Typical ControlNet Network

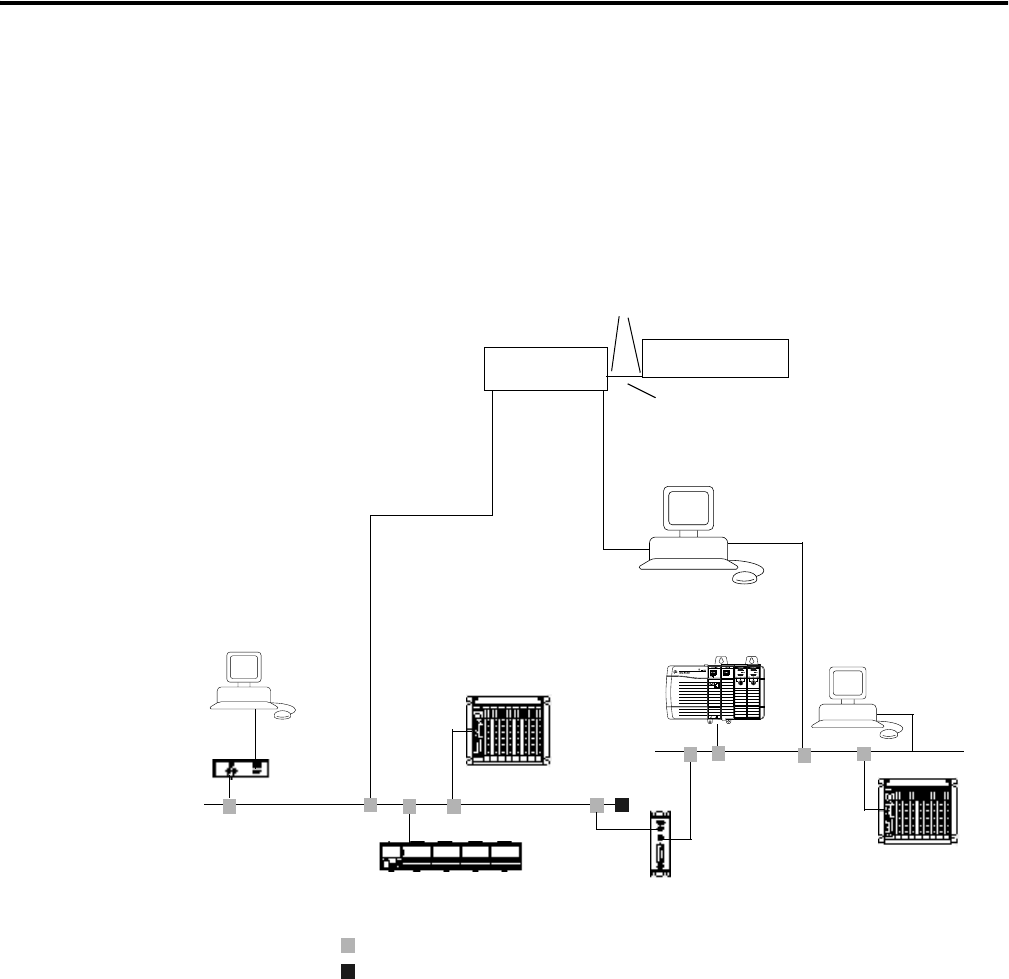

Below is a typical ControlNet network with a InView communication
module installed on a network drop.
InView Display on ControlNet Network
InView ControlNet Communication Module
ControlNet Port BNC
Coaxial Cable
RS-232 Port
PLC-5/40C Controller
Serial Link
PLC-5/80C
Repeater
(1786-RPT)
1786-RG6 Cable
Serial Link
1770-KFC
Flex I/O Scanner
(1784-ACN)
= Taps
= Terminators
Personal
Computer
Personal
Computer
1784-KTC(X)
1784-KTC(X) Card to
ControlNet (RSLinx) & WinPFT
Computer for developing
InView applications
ControlLogx 5550
1756-CNB Module
Interface Card
2706-P22R
2706-P4x
2706-P7x
2706-P9x
InView display
CNet Comm
Module
RS-232 Port
77156-094
InView display
OR
PC Interface
