3-22 InView Communication Module Connections
• Use the RS-232 port to connect an InView display to trigger
messages.
For details on connecting to the RS-232 port, see the last section in
this chapter.
InView Communication Module DeviceNet Ports
Make DeviceNet Connections
Use one of the cables below to connect the DeviceNet version of the
InView communication module to a DeviceNet network.
DeviceNet Cables
Cable Cat. No.
DeviceNet Cable, 50 m (164 ft) 1485C-P1A50
DeviceNet Cable, 100 m (328 ft) 1485C-P1A150
DeviceNet Cable, 150 m (492 ft) 1485C-P1A300
IMPORTANT
Refer to DeviceNet Cable System Planning and
Installation manual, publication 1485-6.7.1, for
network layout and design information
Terminal Block Wiring
DeviceNet
Terminal Block
Terminal Signal Function Color
1 COM Common Black
2 CAN_L Signal Low Blue
3 SHIELD Shield Uninsulated
4 CAN_H Signal High White
5 VDC+ Power Supply Red

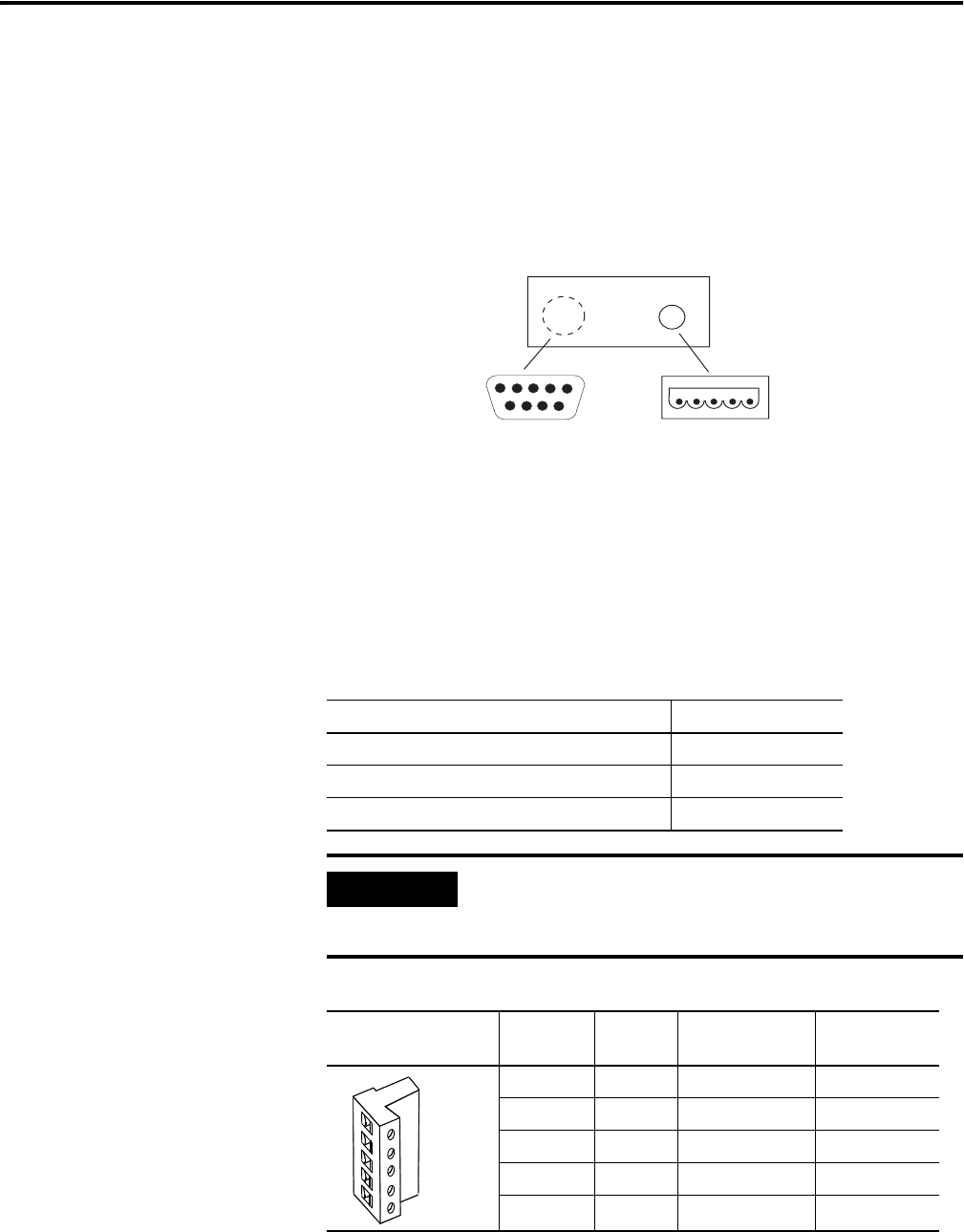

InView DeviceNet Communication Module
12345
67 8 9
RS-232 Port DeviceNet Port
1
5
