3-26 InView Communication Module Connections
Typical EtherNet/IP Configuration

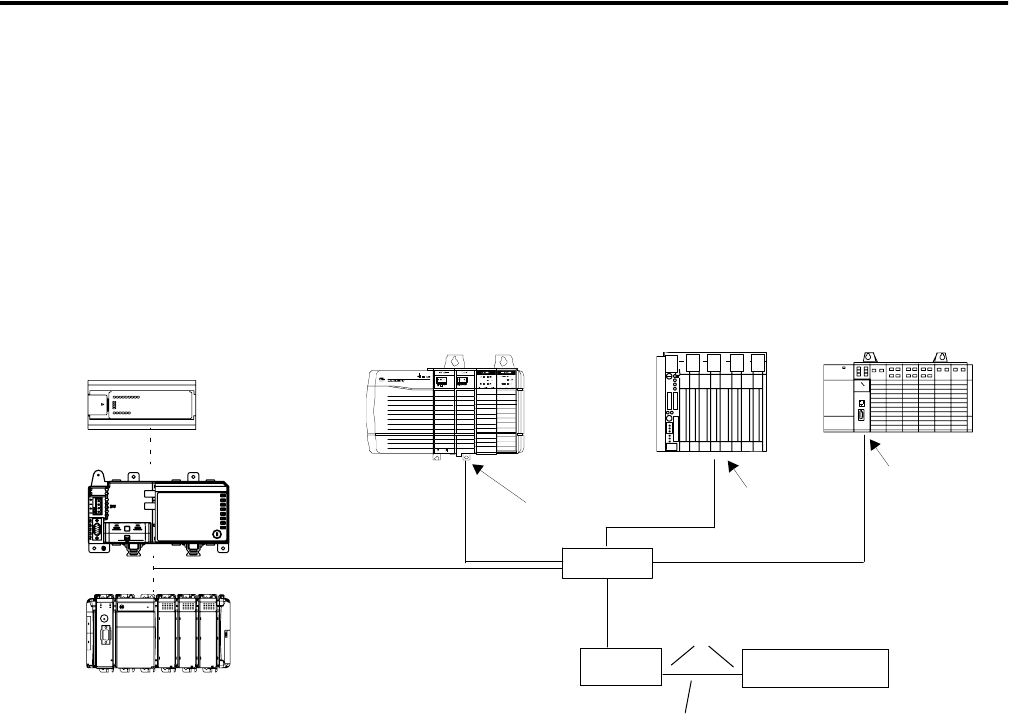

The following illustration shows a ControlLogix controller (with
1756-ENET/B modules), a PLC-5E controller, SLC 5/05, a
MicroLogix/CompactLogix/FlexLogix (with 1761-NET-ENI module),
and an Ethernet InView communication module connected to an
EtherNet/IP network. Note that each node has a unique IP address.
EtherNet/IP Network
Connect a Computer
The InView communication modules have an RS-232 serial port to:
• download applications over a serial link.
• connect an InView display to trigger messages.
Communication parameters for the RS-232 port are set on the Printer
Setup screen of the Configuration Mode menu.
MicroLogix, FlexLogix, or CompactLogix
with 1761-NET-ENI Module
10.0.0.2
Hub
10.0.0.3
1756-ENET/B
10.0.0.1
PLC-5E Controller
SLC 5/05
10.0.0.4
Ethernet Cable
ControlLogix 5550 Controller
10.0.0.5
EtherNet Port
InView Display
ENet Comm
Module
RS-232 Port
77156-094
2706-P22R
2706-P4x
2706-P7x
2706-P9x
