1 Publication 2706-UM017C-EN-P - March 2006
Chapter
4
Application Guide
New techniques and application notes using InView displays are
continually being added and updated. Please refer to these web pages
for new or updated information.
• http://www.ab.com/eoi/inview/
• http://support.rockwellautomation.com/
ControlNet Communication
and Tag Setup Screens
The InView message display communicates with PLC processors,
FlexLogix controllers, or ControlLogix 5000 controllers on a
ControlNet network using Unscheduled Messaging.
PLC Processor

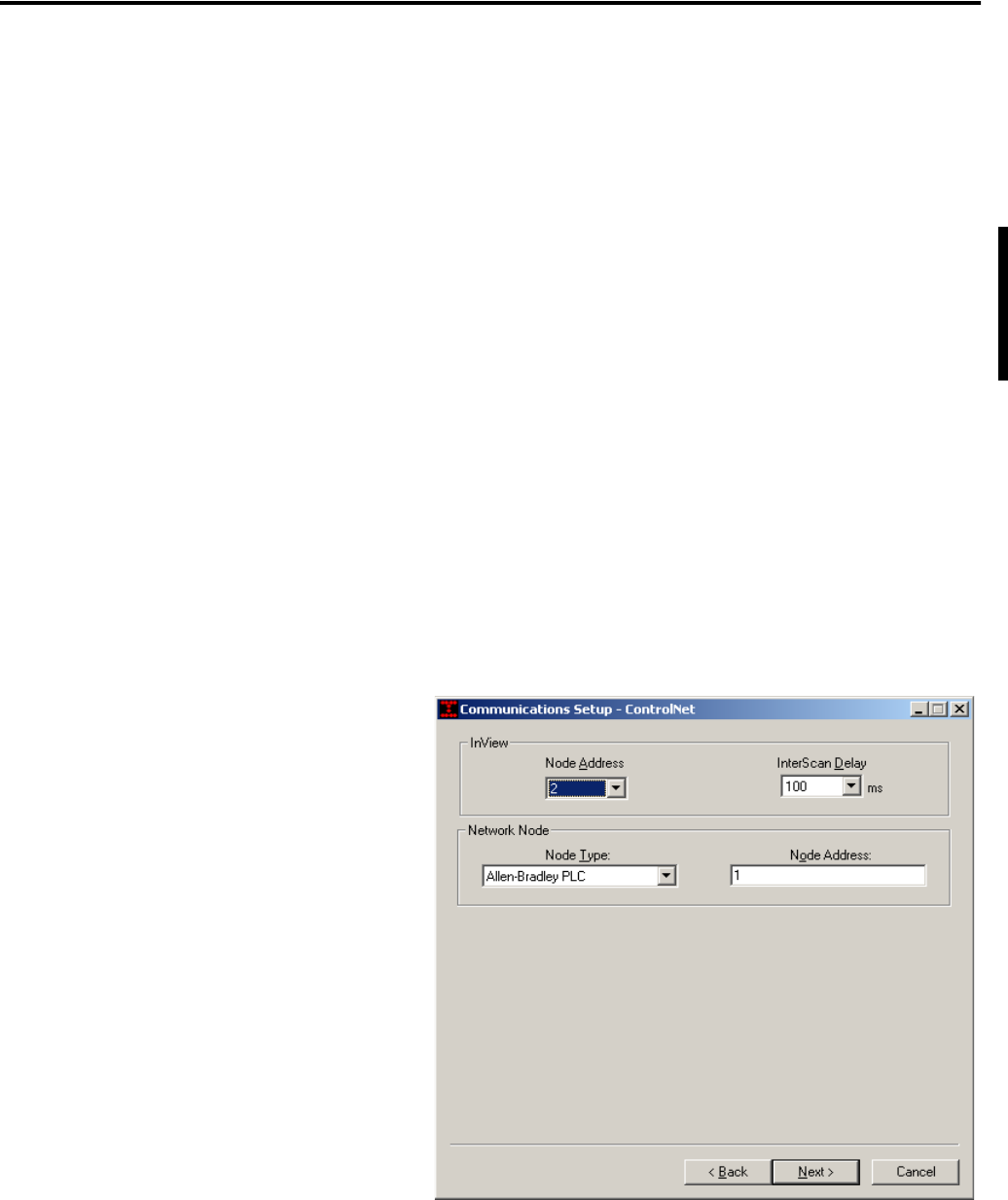

ControlNet Communications Setup
