Application Guide 4-13
ControlLogix Controller

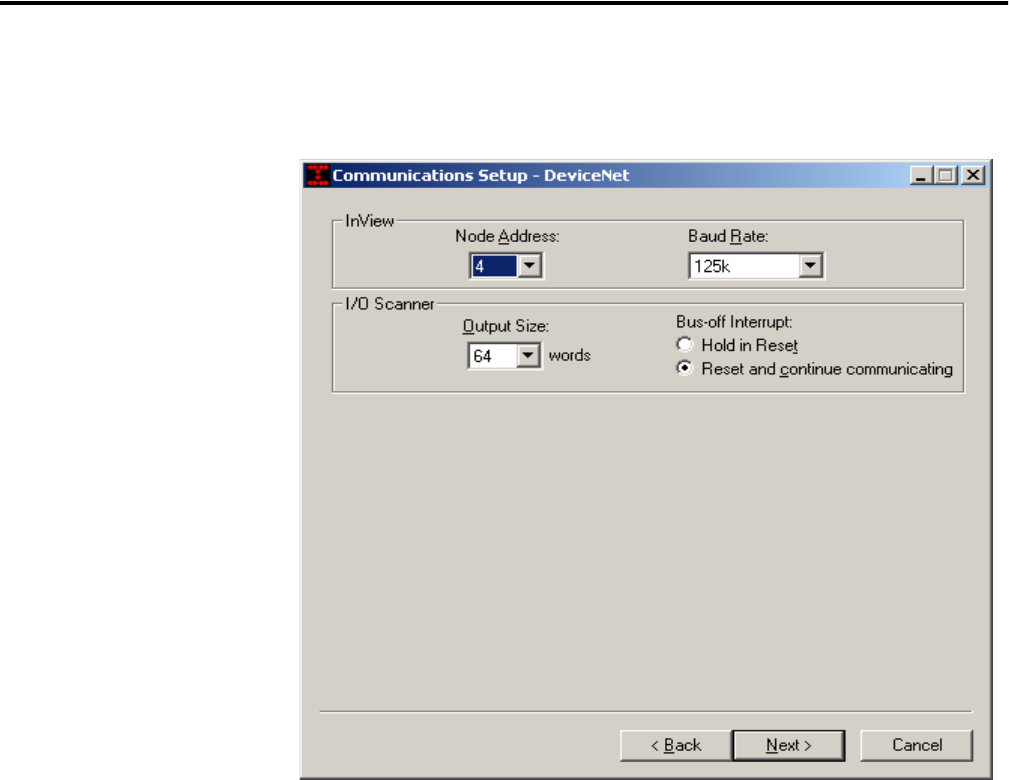

DeviceNet Communications Setup
InView Parameters
• Node Address. Unique address (0 to 63) of the InView display
on the DeviceNet network. You can also select 64 to use the
most recent address stored on the communications card. If you
select 64, the node address can be set from the network using a
DeviceNet network configuration tool.
• Baud Rate. Communication rate of the DeviceNet network. The
options are AutoBaud, 125 Kbps, 250 Kbps, 500 Kbps, PGM. The
default is 125 Kbps. If you select AutoBaud, the InView display
automatically detects the communication rate on startup
(provided there is sufficient network traffic). If you select PGM,
the InView display uses the most recent communication rate
stored on the communications card. PGM also allows the
communication rate to be set from the network using a
DeviceNet network configuration tool. The display must be reset
before the new communication takes effect. The maximum
cable length is restricted at higher communication rates.
