4-16 Application Guide
Data Highway Plus (DH+)
Communication and Tag
Setup Screens
The InView message display communicates with PLC-5 controllers or
SLC 5/04 controllers, ControlLogix 5000 controllers, or SoftLogix
controllers on a DH+ network.
PLC-5 Controller

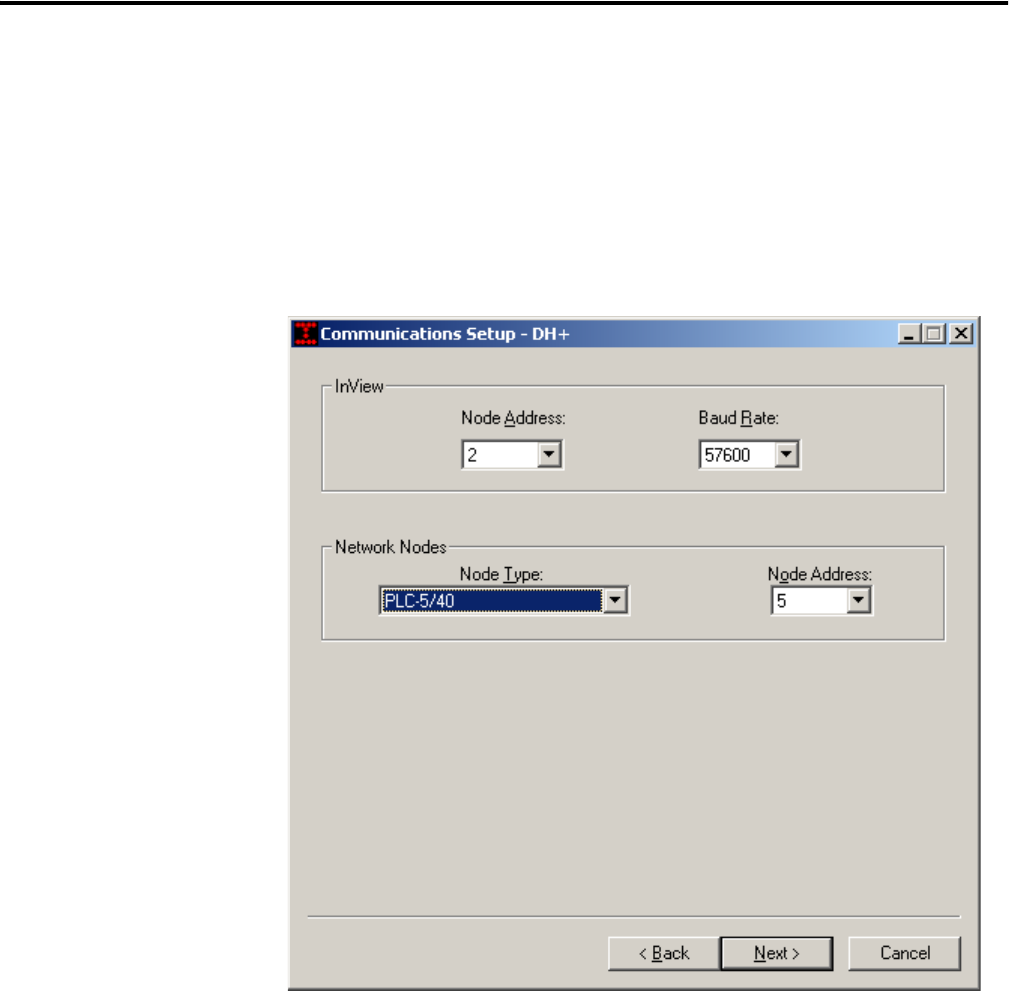

DH+ Communications Setup
InView Parameters
• Node address. Node address (0 to 77 octal) of the InView
display on the DH+ network.
• Baud Rate. The communication rate (57.6 Kbps, 115.2 Kbps,
230.4 Kbps) of the DH+ network.
Network Node Parameters
• Node Type. The type of controller that the InView display
communicates with.
