Publication 2706-UM017C-EN-P - March 2006
Application Guide 4-19
InView Parameters
• Node address. Node address (0 to 77 octal) of the InView
display on the DH+ network.
• Baud Rate. The communication rate (57.6 Kbps, 115.2 Kbps,
230.4 Kbps) of the DH+ network.
Network Node Parameters
• Node Type. The type of controller that the InView display
communicates with.
• Node Address. The node address (0 to 77 octal) of the controller
on the DH+ network.

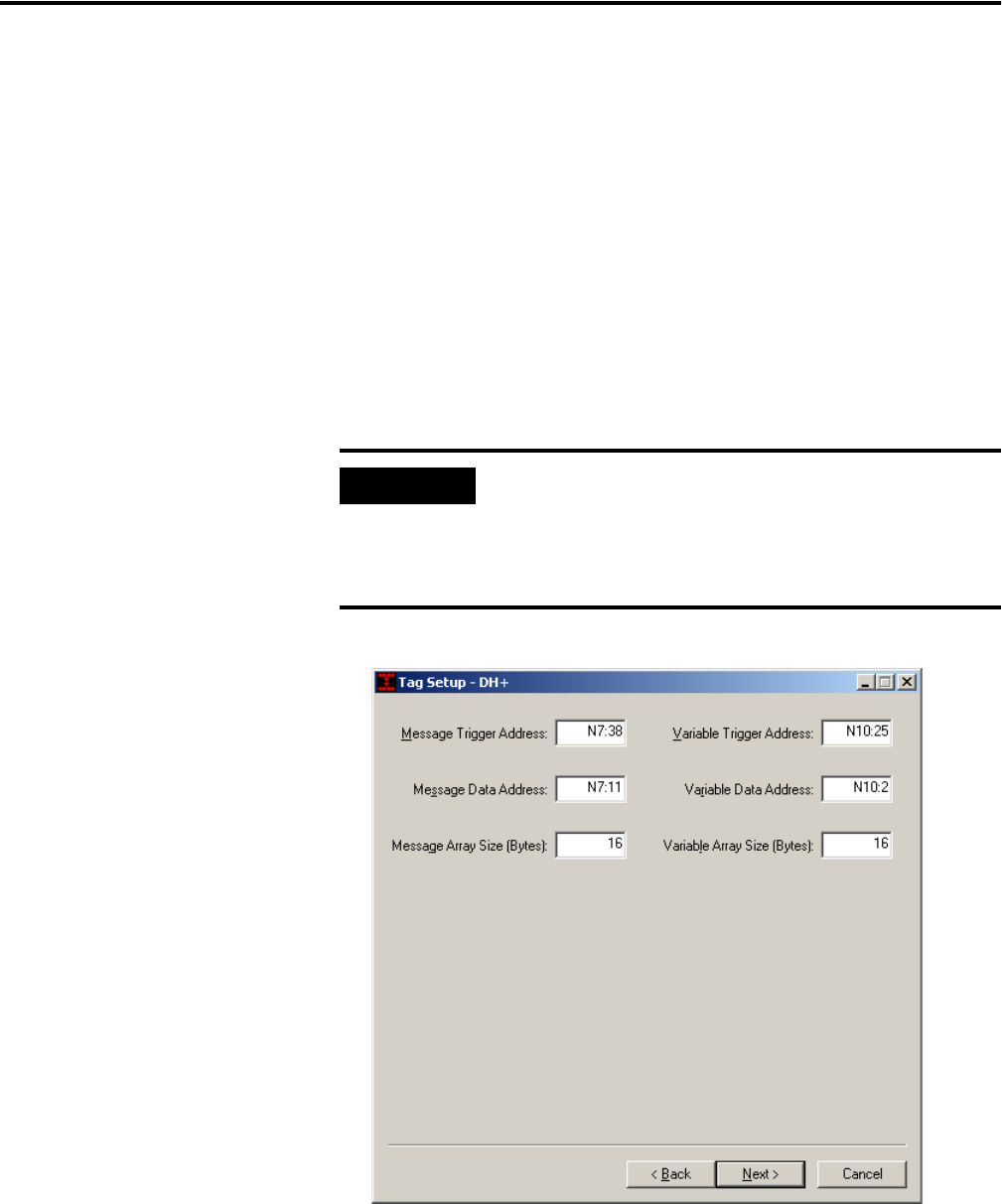

DH+ Tag Setup
• Message Trigger Address. The controller address that triggers a
message to display. This toggles between 0 and 1 in the
controller.
IMPORTANT
All four tags for Message Trigger Address, Message
Data Address, Variable Trigger Address, Variable
Data Address, and the array sizes must be entered
and established in the controller as valid tags even if
they are not used.
