Application Guide 4-21
ControlLogix 5000 Controller

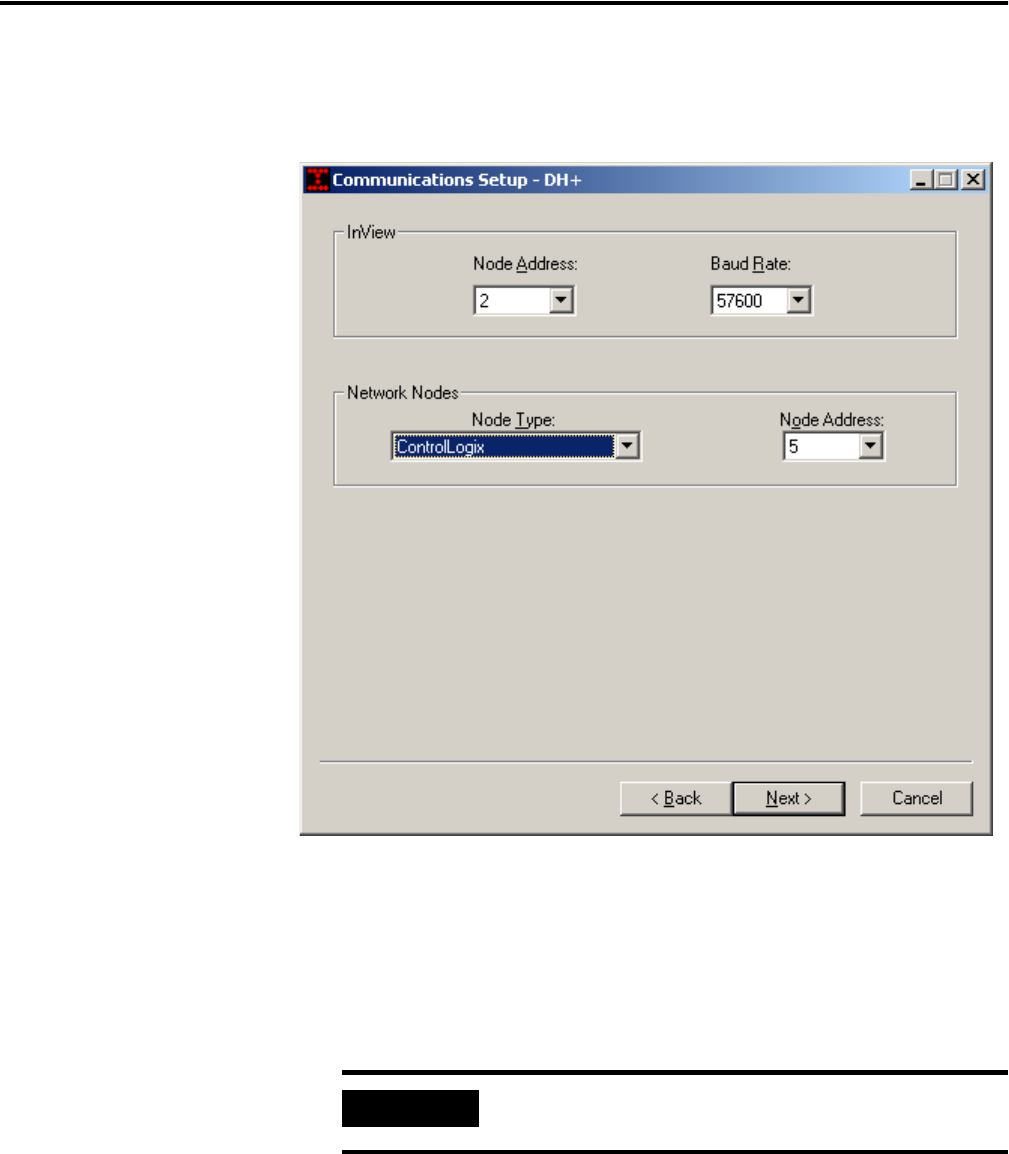

DH+ Communication Setup
InView Parameters
• Node address. Node address (0 to 77 octal) of the InView
display on the DH+ network.
• Baud Rate. The communication rate (57.6 Kbps, 115.2 Kbps,
230.4 Kbps) of the DH+ network.
Network Node Parameters
• Node Type. The type of controller that the InView display
communicates with.
• Node Address. The node address (0 to 77 octal) of the controller
on the DH+ network.
IMPORTANT
Not all communication rates are supported by all
1756-DHRIO modules.
